Type Single Head Petrol Engine - China
price: contact company for price

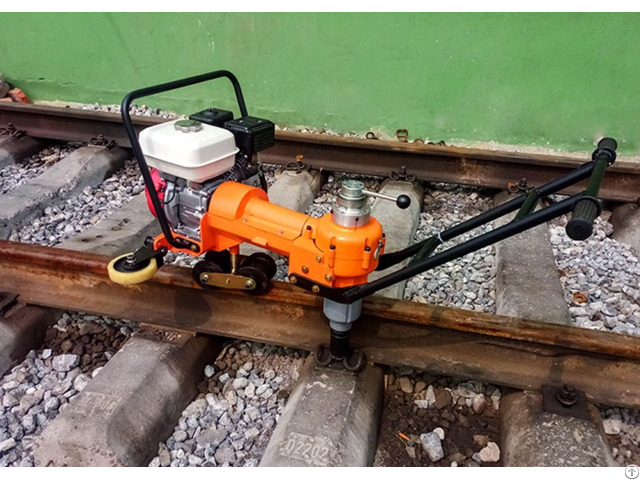

rail track bolt wrench is suitable for loosening & fastening the tie bolt & nut of railway track.
With features of powerful impact force and integrated operating system, it can supply the demand of the locking torque to fasten the rail fastenings conveniently and quickly.
It adopts a traveling unit with 4 rotary wheels at the base.
Therefore, it’s suitable for traveling on land as well as on rail with good mobility.
It’s an ideal special tool to loosen & fasten the tie bolt & nut replacing the heavy manual labor.
TECHNICAL DATA
Rail bolt wrench main parameter Type NLB-300 rail bolt wrench Main shaft rev 780r/min Rated loosing torger ≥300 N•m Rated fastening torque ≥150 N•m Max.
output torque 1100 N•m Working efficiency ≤10 pieces/min Engine model Honda GX160 petrol engine Engine rated power 4kw Engine rated rev 3600r/min Weight 60kg Dimention 1300*510*760
