Radio Shuttle Racking System - China

Radio Shuttle Racking System

Automated Storage System

Radio Shuttle Racking Quote

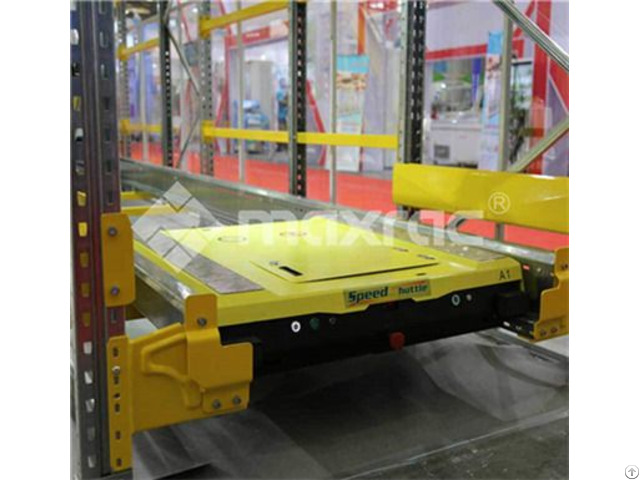

Radio shuttle is a semi-automated high-density storage system, which uses an automatic device to move in the channel back and forth for transportation, forklift pick up at the end.

It’s a perfect option for drive-in racking system using in cold storage, food and beverage industry and other low level of SKU.

It could helps you to create maximum use of the storage and simplifies loading and unloading of goods.

Shuttle carts racking solution that adapts to any warehouse — no matter the size of existing space, allowing maximum optimization of the storage volume and reducing the working times.

The space utilization of warehouse from 40% up to 80% and automatic order picking efficiency doubled or tripled compared to drive in system.

It has supported WCS, WMS software and fulfilled in line with the new generation of Internet of things(IoT)plus era and realized the long-distance monitor and control (no limit of flow).

By using the network solve your problem more efficiently and greatly reduce the labor cost.

Advantages:

Efficient load and unload system, which ensures high accuracy.

Less damage to the racking units as the forklift does not enter the racking unit.

Greatly reduced labor cost

Compatible with different pallet sizes.

Ideal for storage at low temperature(-25℃)

Specification:

Radio shuttle Performance

Traveling Speed Loaded 1.2m/s Unloaded 0.8m/s

Working Range time 8-10h

Weight 250kg

Remote distance 500m

Carrying load 1500kg

Pallet size 1m-1.2m

Pallet lift height 45mm

Lifting and downtime 1.5s

Battery

Voltage 24V

Capacity lithium battery 60Ah

Charging period 3 hours at room temperature(0℃-45℃)6 hours at low temperature(-25℃ -0℃)

Battery life More than 2000 times

Remote control

Frequency 433.05MHz-434.6MHz

Battery Rechargeable

Protection degree IP 65

Screen LED

Control mode Manual and automatic

Communication capacity 8 Shuttle carts
