Goldhofer Thp Sl Modular Trailer - China

Goldhofer THP/SL

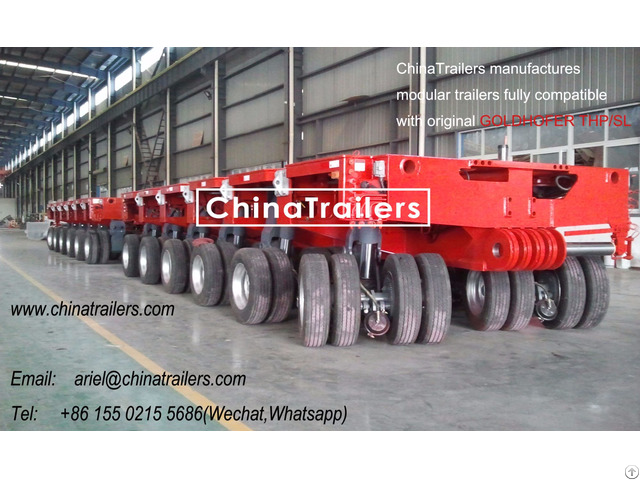

Heavy load is inescapable linked with ChinaTrailers manufactures modular trailers fully compatible with original Goldhofer THP/SL ariel (at) chinatrailers.

com heavy-duty modules – the original for special loads.

ChinaTrailer is always the right choice for transport operations with heavy loads requiring a high bending moment.

The THP/SL modules can also be employed in a split version for combination to almost every vehicle width.

Different axle spacing and numerous vehicle variations like hydraulically width adjustment make the THP/SL an adequate solution for every transport situation.

Goldhofer THP/SL Features

Designed for concentrated loads and heavy loads in the drop deck

Mechanical width adjustment with spacers

Hydraulically width adjustment on the THP/SL split (1800)

Torsion-resistant frame with closed loading platform for concentrated loads and heavy-duty loads in the drop deck

Optimized for operation on public roads, construction sites and inside plant operations

Options:

Combinations with other heavy-duty modules

Various goosenecks

Choice of decks

Standard accessories (drawbar, swivel arm, center pulling device, etc.

)

Split version

Etc., etc.

Technical Data

Basic width: 3, 000mm

Axle spacing: 1, 500mm or 1, 800mm alternative spacing

Twin tires 215/75 R 17.5

Axle load 45t at 1km/h Our main Products are as follows:

Modular Trailers, Self propelled SPMT, Lowbed Semi trailer, Wind Blade Trailer;

Goldhofer THP/SL, Nicolas MDED, KAMAG K25, Scheuerle, Cometto;

Modular Trailer Accessories including hydraulic gooseneck, drop deck, spacer, girder bridge, vessel bridge, turntable Scheuerle SPMT, Self-propelled Modular Transporters, Electronic Control Independent Steering SPMT 3 / 4 / 5 / 6 axle lowbed semi trailer, 8 axle / 10 axle Extendable lowbed trailer, Telescopic Trailer for Wind Blade (up to 65m length), wind blade adapter, Detachable gooseneck Lowboy Trailer.

Email: ariel (at) chinatrailers.

com

Tel: +86 155 0215 5686 (Wechat, Whatsapp)

Company Contact:

• Posted By: ChinaTrailers

• Phone: +86 155 0215 5686

• Address: 1A207,No.88 Sanlin Road,Pudong,Shanghai, Shanghai , Shanghai , China

• Email:

• Website: https://www.chinatrailers.com

• Business Description: ChinaTrailers is the Chinese market leader in the design and production of vehicles for abnormal road transport with payloads from 20 up to 1000 tonnes.

  In order to further build on this trend-setting position, we continuously strive to improve quality and service.

  Our modular trailers could fully compatible with the original Goldhofer THP/SL / Nicolas / KAMAG K25 / Scheuerle / Cometto.
