Lpg Semi Trailer Hot Sale - China

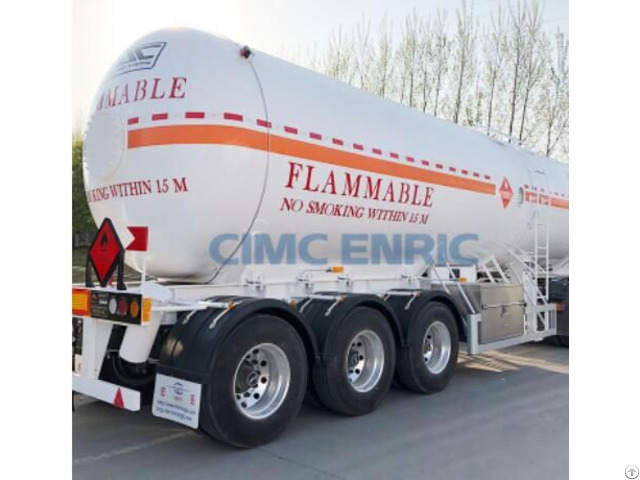

LPG semi-trailer is a normal temperature mobile pressure vessel (excluding tractor), single-layer tank structure, dedicated to the storage and transportation of liquefied petroleum gas, and low-alloy steel plate for the vessel, with excellent performance, safety and reliability

DESCRIPTION

Certifications

What certifications do we own?

We have professional design and manufacturing qualifications of Chinese A2, A3, C2, SAD and American ASME U/ U2 Main functions

Key Features

The main material is low-alloy steel plates for pressure vessels, the valve accessories are selected from famous brands in the industry, professional design and manufacturing team, perfect quality assurance system, the existing series volume from 46m³~63.1m³, can be customized according to customer needs.

What is the purpose of the product?

This product is a special tank truck used for storage and transportation of LPG, equipped with special safety accessories, loading and unloading accessories.

What benefits will you get from product?

Customers can use this product for safe storage and transportation of LPG, such as short, medium and long-distance road transportation, etc.

Use

Where can this product be used?

This product can be used for road transportation between areas with ambient temperature of -40℃~50℃.

Who might use this product?

LPG trading companies, transport business carriers and transport teams of large petrochemical companies are potential customers of this product.

Use range

Suitable for mixed liquefied petroleum gas, propane, commercial propane or commercial propane butane mixture medium with saturated vapor pressure ≤1.60MPa at 50℃

Some common uses of the product?

Transportation or temporary transit storage Advantages

Primary advantages

Safe and reliable, large volume, light overall mass and high transportation efficiency.

Why should I buy this product?

Forty years of professional design and manufacturing experience, the first market share in China for thirty-six consecutive years, reliable quality and service guarantee.

What makes this product different to competitor products?

High cost performance, quality assurance, high responsibility and perfect after-sales service system.

Our service

Our Policy

HONGTU has the design & fabrication capacity of LPG stationary storage tanks including above-ground tanks, underground tanks and mounded tanks etc.

All kinds of tanks could be customized according to the customers' requirements.

Unique deliveries

EXW/FOB/CFR/CIF/DAP


Shipped by RORO ship or Bulk Ship Warranty information

One year warranty after delivery Payment method

What payment method do we have?

T/T, L/C Export cases

Main markets

Asia, Southeast Asia, Africa, South America, North America Specifications

Product specifications

Technical parameters I.

ASME Code

Capacity 38.3m³ 46m³(with pump)** 47.5m³ 55m³ 58m³ 60m³(with pump)**

*Max.

Payload 18000kg(19.15 t) 21300kg(23 t) 23000kg(23.75 t) 25710kg(27.5 t) 26130kg(29 t) 25500kg(30 t)

Kerb Weight 11900kg 16900kg 14000kg 16790kg 17300kg 22150kg

Gross Vehicle Weight 29900kg 38200kg 37000kg 42500kg 43430kg 47650kg

Outline Dimension L: 10470mmW: 2550mmH: 3920mm L: 13152mm

W: 2500mm

H: 3850mm L: 13137mmW: 2500mmH: 3850mm L: 14297mm

W: 2500mm

H: 4000mm L: 13238mmW: 2640mmH: 4050mm L: 13052mm

W: 2550mm

H: 4000mm

Design Pressure 1.724 MPa 2.26 MPa 1.724MPa 1.724MPa 1.724MPa 2.5MPa

MAWP 1.724 MPaat 51.7℃ 2.26 MPaat 70℃ 1.724MPa - 1.724MPa 2.5MPa

Design Temperature 51.7℃ 70℃ -23.3/51.7℃ 50℃ -23.3/51.7℃ -40/+70℃

Corrosion Allowance 0mm 2mm 0mm 0mm 0mm 1mm

Material of Shell SA-612M(N) SA-537M SA-612M(N) SA-612M(N) SA-612M(N) SA-612

Material of Head SA-612M(N) SA-537M SA-612M(N) SA-612M(N) SA-612M(N) SA-612

Thickness of Shell 12.5mm 15mm 12mm 12.5mm 14mm 16mm

Thickness of Head 8mm 10mm 8mm 8mm 8mm 16mm

Test Pressure(Hydraulic Horizontal) 2.25MPa 3.4MPa 2.24MPa 2.25MPa 2.25MPa 3.58MPa

Air Test Pressure 1.724MPa 2.26MPa 1.724MPa 1.724MPa 1.724MPa -

*Please note that different medium component will cause different density and different payload.

** CIMC Hongtu is able to supply you LPG trailer with pump, the reference photos can be viewed hereinafter.

***Please contact for more different kinds of capacity and standard tanks.
