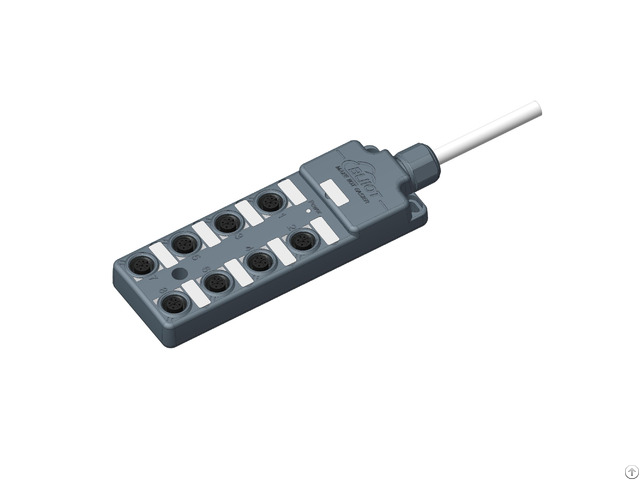

Dbw 4 Way M12 Single Channel 2 5m Precast Cable Ip68 Waterproof Io Actuator Junction Box - China

DBW series sensor distributor adopts an industrial-grade design with a corrosion-resistant housing made of acid and alkali-resistant materials.

It can achieve an IP67 protection rating and, through potting technology, can reach an IP69K protection rating.

It can be used to collect NPN or PNP sensor signals from different devices on-site, integrating them into a single multi-core cable for connection from the sensors to the controller.

The DBW series sensor distributor features a compact size, offering flexible installation and simple, stable, and reliable wiring.

It is suitable for a wide range of industrial automation equipment, including logistics equipment, food processing equipment, pharmaceutical equipment, and more.

Cable Type 8 Channel: 8x0.3mm2+3x0.75mm2(Gray)

Technical Parameters Rated Voltage 24V DC Rated Current 2A IP Level IP67/IP69K Safety Protection Main Circuit, Branch Circuit Overload Protection Operating Temperature -20~+70℃ Storage Temperature -40~+85℃ LED Indicators Power Supply (Red), Signal S1 (Yellow)

Item Number 2m cable-8 ports PNP DBW-M12-8P-1S-P-2-PVC-GY 5m cable-8 ports PNP DBW-M12-8P-1S-P-5-PVC-GY 2m cable-8 ports NPN DBW-M12-8P-1S-N-2-PVC-GY 5m cable-8 ports NPN DBW-M12-8P-1S-N-5-PVC-GY Cable Type 8 channel: 8x0.3mm2+3x0.75mm2(Gray) 16 channel: 16x0.3mm2+3x0.75mm2(Gray)

Technical Parameters Rated Voltage 24V DC Rated Current 2A IP Level IP67/IP69K Safety Protection Main Circuit, Branch Circuit Overload Protection Operating Temperature -20~+70℃ Storage Temperature -40~+85℃ LED Indicators Power Supply (Red), Signal S1 (Yellow), Signal S2 (Yellow)

Item Number 2m cable-4 ports PNP DBW-M12-4P-2S-P-2-PVC-GY 5m cable-4 ports PNP DBW-M12-4P-2S-P-5-PVC-GY 2m cable-8 ports PNP DBW-M12-8P-2S-P-2-PVC-GY 5m cable-8 ports PNP DBW-M12-8P-2S-P-5-PVC-GY 2m cable-4 ports NPN DBW-M12-4P-2S-N-2-PVC-GY 5m cable-4 ports NPN DBW-M12-4P-2S-N-5-PVC-GY 2m cable-8 ports NPN DBW-M12-8P-2S-N-2-PVC-GY 5m cable-8 ports NPN DBW-M12-8P-2S-N-5-PVC-GY
