Oem Odm Expanded I O Module With Rs485 4di 4do For Non Standard Automation - China

1 - Overview

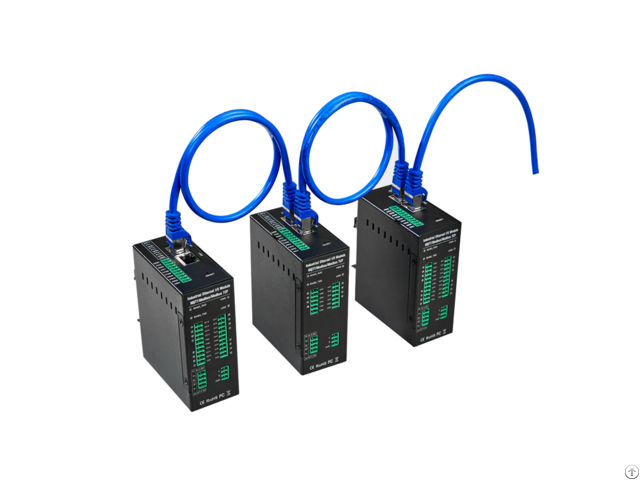

The M series Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive Ethernet module inside.

It comes with multi I/O, supports standard Modbus TCP, supports Modbus master and slave, can be integrated into SCADA, OPC server, and other automation systems.

It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

The M series Ethernet Remote I/O module comes with a RS485 interface, through the RS485 bus, it can cascade Modbus I/O devices or Modbus meters, e.

g: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs.

At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus I/O data are automatically collected to the register mapping area, the TCP Client polling without waiting then can get a quick response to meet the industrial timely requirements.

The M series Ethernet Remote I/O module features different I/O ports for variety applications.

Includes optical-isolated digital inputs, compatibles dry contact and wet contact, supports max 700KHz high speed pulse counter; digital outputs supports 10Hz~300Khz high speed pulse output or relay outputs; isolated 12bit and 16bit analog inputs, support 0~5V, 0~10V, 4~20mA, 0~20mA analog signal; 12bits analog outputs, supports 0~10VDC signal output; resistance thermal detector inputs compatible 2/3 wires PT100 and PT1000, and thermocouple inputs.

All the I/O interfaces are high sampling frequency and special filtering strategy to ensure its reliability.

The M series Ethernet Remote I/O module can work at wide working voltage range, the range is 12 ~ 36VDC with anti-reverse protection design.

Also, it provides 1channel 12~36VDC power output for external device to save wiring cost.

2 - Typical Application

Industrial automation data acquisition and control;

Smart grid data acquisition and control;

Smart transportation data acquisition and control;

Cold storage temperature monitoring, fruit and vegetable storage room, industrial computer room, transformer cabinet, etc.

;

Warehousing and libraries temperature and humidity data acquisition and monitoring;

Solar monitoring system data transmission;

Data transmission of ATM, POS, electric meter, PLC, DAQ and other equipment;

Agricultural temperature and humidity data acquisition and monitoring;

Breeding temperature and humidity data acquisition and monitoring;

Charging pile data acquisition and transmission;

Meteorological station data acquisition and monitoring;

Environmental protection data acquisition and control;

Occasions where other monitoring points are scattered; 3 - Packing List

1xM series I/O module, 1xDIN 35mm rail buckle, Wiring terminal

1.4Features

Standard Modbus TCP protocol, Modbus RTU over TCP protocol, and MQTT protocol;

Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;

Power supply 9~36V DC with over voltage and phase-reversal protection;

Management and configuration via LAN connection configuration software for easy operation and maintenance;

Integrated 10/100M adaptive Ethernet port, With 15KV ESD protection;

Optical isolated digital input(Compatible Dry or Wet type), supports max 700KHz high speed pulse counter;

Support DIN2~DIN12 as a low-speed pulse counter.

The anti-jitter time can be set to 1~2000ms, the default is 1ms, and the corresponding pulse frequency is up to 1KHz;

DO supports Sink output, DO1 can be used as high-speed pulse output, supports 10Hz~300KHz;

Isolated analog input, 12-bit and 16-bit resolution, supports 0~20mA, 4~20mA, 0-5VDC, 0-10VDC;

Analog output, 12-bit resolution, supports 0-10VDC;

RTD input, supports PT100 and PT1000 resistance sensor, compatible 2 or 3 wires;

TC input, supports B, E, J, K, N, R, S, T type thermocouples;

High sampling frequency and special filtering strategy to ensure reliability;

1 RS485 Serial port, supports Modbus RTU Master/Slave, can extend I/O modules;

Supports register mapping function and extend I/O inquiry strategy;

Supports TCP Client and TCP Server, supports max.

5 TCP Client connections;

1 channel VDC power source output for external device, saving wiring cost;

LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

Using metal shell, protection class IP30 - Metal shell and system security isolation, especially suitable for industrial applications in the field;

Small size, L82xW40xH99mm, compatible wall installation and DIN35mm industrial rail installation.
