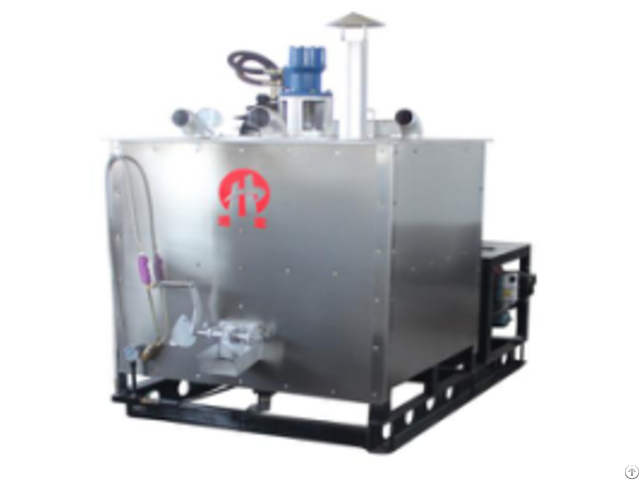

Road Marking Machine Hydraulic Single Cylinder Thermoplastic Paint Pre Heater 400 - China

Technical Data:

Model Number: YHHF-400

Diesel Power(W): 10.6KW(14HP)

Diesel engine startup mode: Manual or electric start

Hydraulic motor power: 13KM

Transmission Model: Hydraulic transmission

Heating Mode: Liquefied petroleum gas (Diesel injection burner coming soon)

The number of bottle: Two

Cylinder capacity? 400kg ?16 bags ?

Cylinder structure: Suspended

Insulation construction: Three layers of circular heat preservation

Bottom of the pot material: High carbon steel alloy

Thickness of bottom of the pot: 10mm

Panel material: Stainless steel

Hydraulic oil tank capacity?50L

Heating temperature: 0-300?

Recommended discharge temperature: 180-220?

Machine weight: 400kg

Dimensions(L*W*H): 990*1550*1460mm

Application:

Thermoplastic pre-heater, also called hot melt kettle, always matched with thermoplastic machine, is used for heating, melting, and stirring thermoplastic road marking paints continuously, preparing hot melt paints for the thermoplastic road marking machine during long distance road lines marking work.

Thermoplastic pre-heater can be used in the following areas:

Highways-for guiding and controlling traffic

City roads-for smooth flow of traffic city streets

Airports & runways

Side streets

Parking lots

Railway platform

Bus stops

Zebra crossing

Bike paths

Motorway etc

Warnnig Tips:

1 - The temperature is high, so wear gloves before operate the thermoplastic pre-heater to prevent getting burnt.

2 - If the thermoplastic paint is wet or there is water in the kettle, please open the cover on the kettle when heated.

3 - During the construction, first, put powder coating (additives) into the hot-melt kettle.

The heating temperature must be controlled between 180 ? ~ 220 ?.

4 - Begain stirring while melting, when the paint into a homogeneous liquid state (above 100?).

Turn reversing valves in neutral first, when the paddle is completely stopped, then starting the reverse stirring.

5 - And then, the hot-melt material is ready to be discharged into the thermoplastic road marking machine for marking construction.

6 - Avoiding remaining too much coating after construction.

7 - Regularly check the gas pipe, prevent aging.

8 - The melting paint quality affects directly to the traffic lines marking quality, so the pre-heater is a key part during thermoplastic paint roadline construction, and essential device for thermoplastic paints heating and melting.
