Uva 365 S Flashlight Type Fluorescent Flaw Detector - China

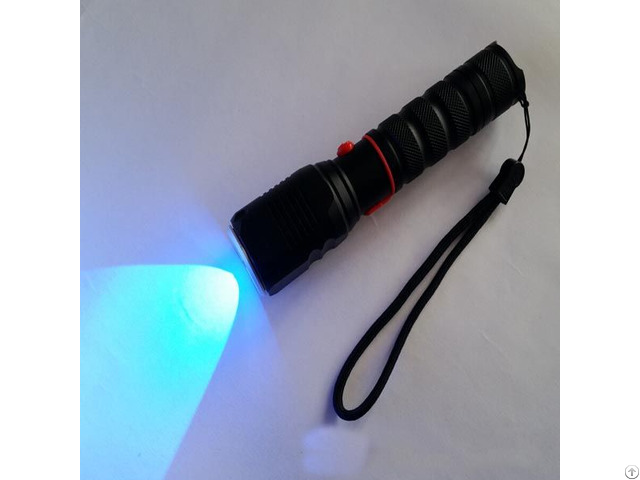

UVA-365/S Flashlight Type Fluorescent Flaw Detector

1 - Product introduction ：

The use of lithium battery power supply, eachof whichare strictly detected in order to ensure that the

wavelength of 365nm NMThe black light spectrum, safety, with UV-A components, high saturation

illuminance, efficient detection tool forfluorescent magnetic particle inspection and fluorescent penetrant

inspection.

Using LED cold light source, life up to 30thousand hours.

Also known as: High intensity ultraviolet lamp, black light, Fluorescent flaw detector, black light lamp, Cold light

source lamp black, UV test lamp, Skim cleaning inspection lamp, Surface inspectionlamp, etc.

2 - Product advantage ：

1)Anodized aluminum body againstcorrosion, both suitable forlaboratory and suitable for the use ofthe

plant environment;

2)The release of high intensity pure ultraviolet light, easy to stimulate the phenomenon offluorescence.

Adjustable beam: Spot diameter from 35mm condenser to 400mm floodlight adjustable, radiation intensity

from 15000μW / cm2 to 200μW / cm2 adjustable.

4)Meet the MIL and ASTM fluorescent detection testing specifications, whitelight intensity below10Lux, built-in black filter.

Quick start, no preheating, press the switch, the UV lamp immediately start to achieve the highest intensity, you can start using.

6)Operated by a rechargeable lithium-ion battery, with a sparebattery, each battery can be used after

charging 2 to 3 hours, equipped with a charger.

LED lamp life of 30, 000 hours, electronic stabilizer to ensure continuousand stable UV output.

8)Light body running stable, no wearing parts.

3 - Specification parameter

1)Ultraviolet light source: UV-A LED; peak wavelength: 365nm

2)Light beam adjustment, The spot diameter was about 35 mm at a distance of 380 mmfrom thelamp, and

the ultraviolet intensity was 15, 000 μW / cm2 (15, 000 μW / cm2 = 15 mW/ cm² = 150 W/ m²).

The light

beam was adjusted to a flood light, and the spot diameter was 400 mm at a distance of 380 mm.

The

intensity of the ultraviolet light was 200 W / cm2 = 2 W / m2, and the light was very uniform.

3)Rechargeable lithium battery: 2600mAh, battery voltage, 3.7V

4)Operating time: 2 to 3 hours; Charging time: 4 to6 hours; a battery to completethe operation

5)Spotlight body length: 170mm, astigmatism when the lampbody length: 152mm

6)Head diameter: 40mm, tail diameter: 23mm

7)Weight: 180g (with battery); FCL Quality: 1.2Kg

8)Ambient temperature: 0 ℃ ~ +40 ℃; Humidity: <85%

4 - Configuration list

1)UVA-365/S Flashlight typeLED UV blacklight lamp 1 piece

2)Rechargeable batteries(1+1 Spare) 2 pieces

3)Battery charger 1 piece

4)UV proof glasses 1 piece

5)Suitcase 1 piece

6)Instruction manual 1 piece

5 - Application area

1)Fluorescence detection：Steel, non-ferrous metals, automotive, aircraftand otherfluorescent

penetration testing, fluorescent magnetic particle inspection;

2)Pollution inspection：Electronic components, main board, dust inspection, LCD panel, clean room entry

inspection;

3)Leak check ：Lubrication system, hydraulic system, pipeline, fuel system, engine, gearbox, fluid leakage, various industrial systems air conditioning and refrigeration systems such as engine oil, hydraulicoil, fuel, refrigerant, water leakage check, check with fluorescent leak detection agent;

4)Oil and fat cleaning validation ：Chemical, storage tanks, valves, piping, gaskets, key components of

grease for cleaning validation；

5)Fluorescent substance discovery ：Bleach, cloth, food packagingpaper, etc., hair fluorescence that is

judged to have the use of bleach.

6)Riboflavin check：Riboflavin pharmaceutical factory reactor coverage inspection and cleaning after

cleaning.

7)Other applications ：Check the car door sound insulation effect of coating wax, electronic circuit board

three paint, UV coating effect.

Biological polymerization, photo catalysis, UV light curing, anti fake mark

inspection, clean room inspection, epoxy coating, quality control inspection and soon.

Paint inspection, identification, detection of tampering counterfeit detection, signature verification, forensic application, encoding/ labeling, arson investigation, laboratory test and so on.

Art archaeology, entomology, Philately, re

admission control, mineralogy etc.

Oilleakage Power steering leakage Fuel leakage

Automatic transmission leakage

Coolant leakage

Hydraulicsystem leakage
