Mgw Bs16 Diesel Heat Bus Spray Booth - China

Technical Parameter

External size 16150 × 11450 × 7300 mm (L×W×H)

Internal size 16000 × 8000 × 6500 mm (L×W×H)

Main door size 5500 × 6200 mm, electric rolling doors, equipped with lifting function and fall protection device

Escape door size 800 × 2000 mm, 4units, aluminum alloy frame, with handle & lock and safety glass windows

Max.

working temperature 80 ºC

Heating time (20-60ºC) 4/6 min

Total power 95kw

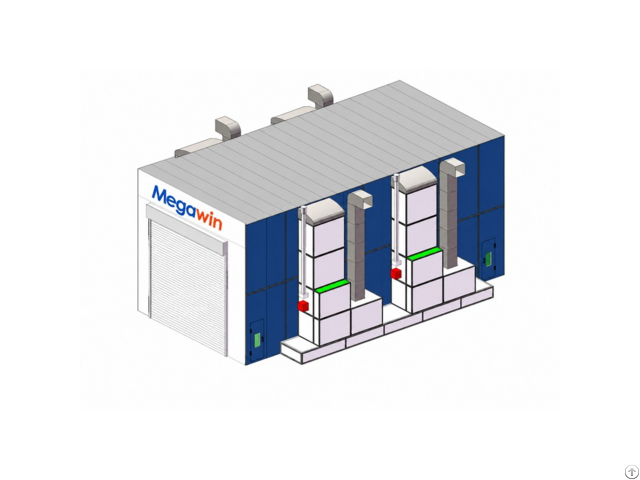

Note: the picture is for reference only

Specification

Cabin system wall panel 75mm EPS panel+0.5mm steel plate+0.6mm galvanized steel roof panel

basement No

Air Handling system intake fan 2 × 5.5kw × 4units centrifugal fan

exhaust fan 1 × 11kw × 4units centrifugal fan

cabinet for fan × 4units, 90° air duct × 12pcs, 45° air duct × 4pcs

Heating system burner Italy Riello RG5D diesel burner ×4units

heat exchanger 304 Stainless steel heat exchanger, argon arc welding

Lighting system ceiling light 30units × 8pcs=240pcs × 18w

side light 27units × 2pcs=54pcs × 18w

Filtering system pre-filter G3 pre-filter effectively capture dust particles larger than 10 microns

ceiling filter italy SF-600G high efficiency filter, filtering rate>99%

floor filter fiberglass filter, filtering rate>70%

Control system power switch, spraying/heating switch, light switch, breakdown alarm, emergency stop, timers, temperature controllers, heating delay stop protection, motor overload protection, overcurrent protection, fan and heating interlock devices, etc

Voltage optional

Color optional

Note All bus spray booth is customizable
