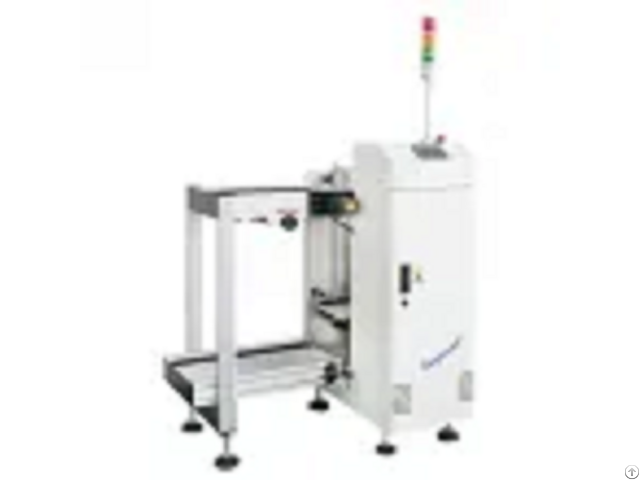

SMT PCB Automatic Loader

Automatic Loader Description

SMT PCB (Surface Mount Technology Printed Circuit Board) automatic loaders are automated machines that are used in the production of electronic devices.

They are specifically designed to handle the loading and unloading of PCBs in surface mount technology (SMT) manufacturing processes.

These machines are highly efficient and can significantly improve the speed and accuracy of PCB assembly lines.

Automatic Loaders are typically used in conjunction with other SMT equipment such as pick and place machines, reflow ovens, and inspection systems.

Automatic Loaders are an important part of modern electronic manufacturing and are widely used in the production of a wide range of products, including smartphones, laptops, and other consumer electronics.

Hayawin Automatic Loader Specifications

● Dimension: L1100*W780*H1200±30mm


● Magazine size: L355*W320*565mm

● Max PCB size: L330*W250mm

● Transport height: 920±20mm

● Transfer direction: Left to right/ right to left

● Belt speed: 0-8m /min

● PCB edge support: 3mm

● Power supply: 100-230v AC

● Power voltage: 300W

● Air supply: 4-6 bar

● Air consumption: max 10 L/min

● PCB unloading time: ±6 seconds

● Pitch distance: 10, 20, 30, 40mm

● Magazine qty: 1 pcs in lifter platform, 1 pcs on convey platform.

For more details about Automatic Loader welcome to contact us.

Hayawin Automatic Loader Features and Benefits

● Enhanced aluminum structure and plastic chains let machine more stable during operation.

● Panasonic PLC control system

● LED TFT touch screen control panel, easy to operate

● Four step pitches selection(10, 20, 30, 40mm)

● 2 magazines exchange keep the board loading uninterrupted

● Special structure with Anti-jammed and foolproof function

● Standard SMEMA communication with other unit timely

Advantages of Hayawin Automatic Loader

Increased efficiency: SMT PCB automatic loaders can significantly increase the speed and accuracy of PCB assembly lines.

They are able to quickly and accurately load and unload PCBs, reducing the need for manual handling and improving overall production efficiency.

Improved quality: Automated loading and unloading of PCBs can help to reduce the risk of damage or contamination during the manufacturing process.

This can result in higher quality products with fewer defects.

Reduced labor costs: Using an automatic loader can reduce the need for manual labor, potentially lowering labor costs and increasing profitability.

Enhanced safety: Automated loading and unloading of PCBs can help to reduce the risk of injury to workers.

This can improve overall safety in the manufacturing environment.
