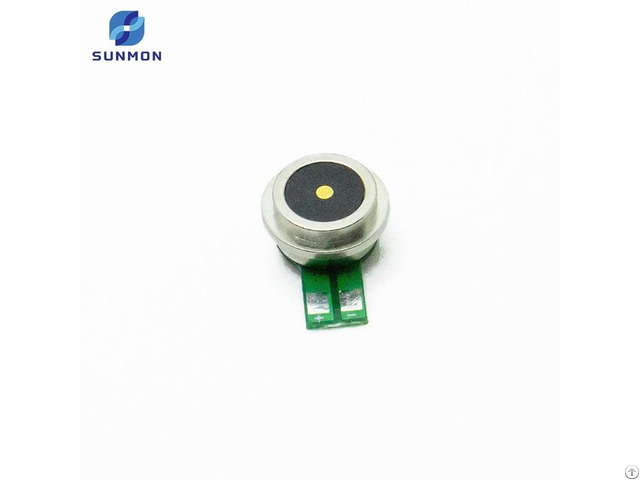

Magnetic Pcb Connector【904 00068】 - China

Rated current & voltage: DC 12V; 3A

Single pin Contact resistance: 30 milliohm Max.

Environment performance: Operating Temp: -30 +60℃

Salt spray: 48h

Male and female docking magnetic force：400gf MIN SUNMON‘s Magnetic PCB Connector is an innovative magnetic connector integrating high-performance PCB design with magnetic connection technology.

Unlike traditional magnetic connectors requiring cumbersome wire harness soldering, its core innovation lies in the high-quality PCB board integrated into the connector tail, enabling seamless integration and circuit optimization.

By incorporating a pre-installed PCB board, the Magnetic PCB Connector directly supports signal transmission, power management, and custom circuit layouts.

This significantly simplifies the assembly process for downstream devices, making it ideal for compact electronics such as smart wearables, medical devices, and consumer electronics.

Core Advantages: Why Choose Magnetic Connectors with PCB Boards?

We understand the challenges you face in product design and manufacturing.

This new connector is engineered to address these pain points: Minimal Assembly Process: Eliminate complex manual wire harness soldering.

You can quickly and precisely solder this connector module directly onto your mainboard via SMT (Surface Mount Technology) or THT (Through-Hole Technology).

Enhanced Production Efficiency: Significantly reduce manual assembly labor hours, lower defect rates caused by soldering errors, and achieve faster mass production.

Space-optimized design: The compact structure (15.00mm diameter) integrates seamlessly with the PCB, freeing up valuable internal space for your compact product designs.

Stable and reliable connection: The PCB features clear polarity markings (“+” / “-”) to ensure accurate connections and highly consistent electrical performance.

Magnetic PCB Connector Product Features

Magnetic Attachment with Integrated PCB Design: Unlike conventional magnetic connectors, SUNMON’s magnetic PCB connector integrates directly with the PCB board.

This simplifies installation while enhancing connection stability for superior reliability.

Superior Electrical Performance: Supports 12V DC voltage with a maximum current of 3A.

Contact resistance per pin does not exceed 30 milliohms, ensuring stable current transmission and low power loss.

Wide Temperature Adaptability:

Operates within a temperature range of -30°C to 60°C, suitable for diverse environmental conditions and guaranteeing long-term stable performance.

Corrosion Resistance:

Passes salt spray testing, demonstrating strong corrosion resistance.

Suitable for harsh environments, ideal for outdoor and industrial applications.

Strong Magnetic Attraction: Features 400gf magnetic force, ensuring secure and reliable connection during use, suitable for equipment requiring high-stability connections.

Environmentally Friendly Materials & Certifications: All materials comply with RoHS and REACH standards, guaranteeing environmental compliance.

Utilizes lead-free copper (HBi59) material with 0.25μm gold plating, ensuring high conductivity and durability.
