Pyb Pyz Pyd Series Cone Crusher - China

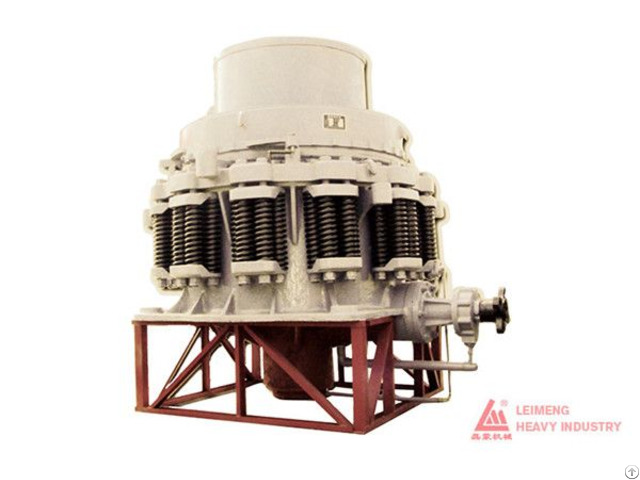

PYB/PYZ/PYD Series Cone Crusher

cone crusher

Type: Secondary crushing

Input size: 50-300mm

Processed Materials:

Concrete waste, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz, coal, etc.

Applications:

Mining, metallurgy, construction, highway, railway, and water conservancy, etc.

Description

This series of cone crusher, absorb the most advanced technology.

is widely applied in industries such as metallurgy, construction site, hydroelectric, chemistry and building industry.

This series cone crusher is intended for crushing bulk materials with medium or above.

Specifications

Model Broken cone

diameter (mm) Max feeding

size (mm) Discharging

port (mm) Handle ability

(mm) Motor (mm) Weight

(t) Size (mm)

PYB900 900 115 30-50 50 - 90 55 10.2 2692 * 1640 * 2350

PYZ900 900 60 15 - 30 20 - 65 55 10.2 2692 * 1640 * 2350

PYD900 900 50 5 - 15 10 - 50 55 10.3 2692 * 1640 * 2350

PYB1200 1200 145 30 - 50 110 - 168 110 22 2790 * 1878 * 2844

PYZ1200 1200 100 20 - 50 60 - 135 110 22 2790 * 1878 * 2844

PYD1200 1200 50 10 - 20 42 - 105 110 22 2790 * 1878 * 2844

PYB1750 1750 215 60 - 100 400 - 600 155 48.5 3910 * 2894 * 3809

PYZ1750 1750 185 30 - 50 200 - 350 155 48.5 3910 * 2894 * 3809

PYD1750 1750 85 15 - 30 120 - 200 155 48.5 3910 * 2894 * 3809

PYB2200 2200 300 100 - 200 650 - 1000 320 80 6440 * 2900 * 5057

PYZ2200 2200 230 70 - 150 480 - 800 320 81.4 6440 * 2900 * 5057

PYD2200 2200 100 35 - 60 320 - 450 320 81.4 6440 * 2900 * 5057

Advantages & Characteristics

1 - Higher productivity and quality

2 - Reducing downtime

3 - Easy maintenance, lower cost

4 - Outstanding performance to crush bulk materials into fine, medium-fine, ultra-fine particle.
