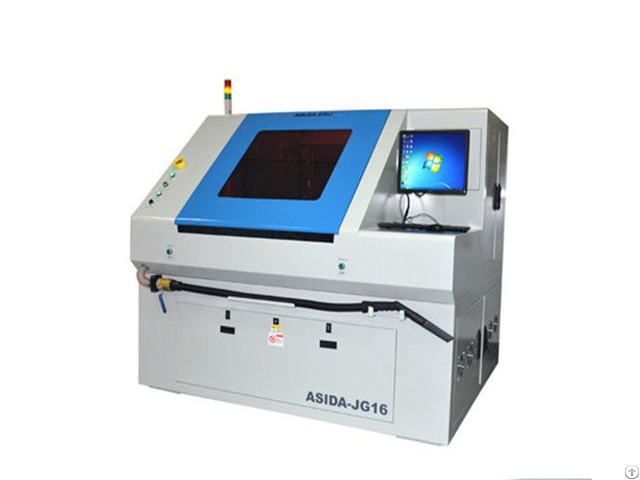

UV Laser Cutting Machine JG16

Laser Cutting Machine

Usage

The machine is used in cutting, opening the window and uncovery for CVL/FPC/RF and thin multilayer board, as well as cutting a variety of substrates, such as ceramic, silicon etc.

Feature

(1)Precision:

Adopting high-precision linear motor modules, servo control, Sizing Compensate, optical positioning and secondary positioning technologies.

(2)High quality

(a)little carbonization;

(b)high density graphics cutting.

(3)Highly intelligent, efficient

(a)With multi-panels cutting, auto-positioning, auto-correcting, automatically focus, automatic sizing compensation and exclusive cutting previews functions;

(b)JG16 use double working table to save time of feeding and blanking materials.

Parametres

Specification of UV Laser Cutting Machine

Model JG16

Wavelength 355nm

Laser Power Option (Standard 10W)

Laser Frequency 30-120kHz

Maximum Processing Size 500mm x 400mm

(Double platform)

Maximum Operating Speed 800mm/s

Positioning Accuracy of Table ±3μm

Repetitive Positioning Accuracy of Table ±1μm

Total Accuracy ±20um

light spots 20±5μm

Scanning range 45mmx45mm

File Format *.

gbr & *.

dxf & *.

lay

Electric Power Supply AC220V/2kW； AC380V/5.5kW

Dimensions(L x W x H) 1850mmx1640mmx1650mm

Weight 2400kg

Environmental Temperature 20±2℃

Environmental Humidity ≤60%RH, Non-condensing

Ground Amplitude ≤5μm

Ground Pressure ≥1000Kgf/m2
