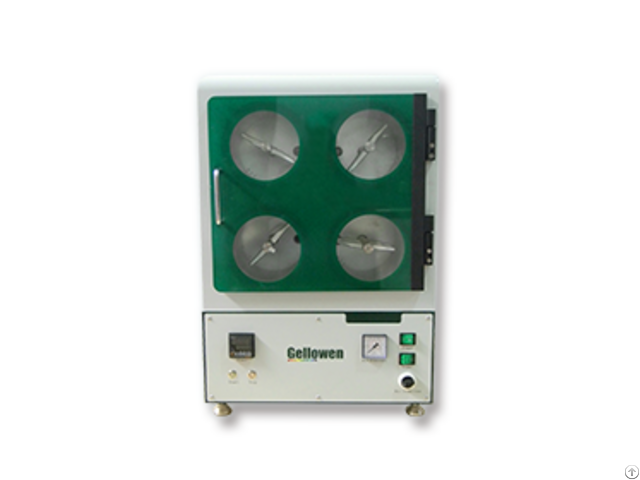

Random Tumble Pilling Chamber - China

Standards:

ASTM D3512 - GB/T 4802.4 - ISO 12945.3 - JIS L1076-D Applications:

Random Tumble Pilling Tester is used to determine the pilling and fuzzing characteristics of textile fabrics.

The test specimens with dimensions of 105mm×105mm are put in the chambers, stainless steel impellers rotate within individually lit aluminium chambers constantly tumbling test fabrics against cork liners for a predetermined time controlled by a timer and audible alarm.

Compressed air is also injected into the chamber to assist in the tumbling action.

The pressure is adjustable.

Technical Parameters:

1 - Number of test chambers: 4; 2 - Each test chamber is equipped with a rotating stainless impellers; 3 - Reliably Sealing in testing chambers; 4 - With digital electronic counter; 5 - With buzzer to remind the end of test; 6 - With pressure gauge and the timer; 7 - Drum Specification: 146×152mm; 8 - Cork liner Specifications: 452×146×1.5mm; 9 - Rods specifications: L=121mm; 10 - Rotating speed: 1200r/min; 11 - Compressed air: 0.014-0.021 MPa.

Instrument Configurations:

1 - Pilling Photographic Standards; 2 - Cork Liner (Pack of 50); 3 - Cotton Sliver (9m); 4 - Mute air compressor (optional); 5 - Other necessary accessories recommended by manufacturer.
