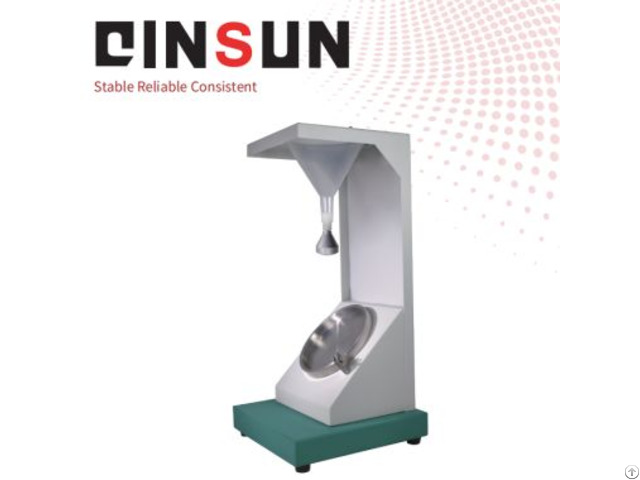

Spray Rating Test Machine - China

Standards:

ISO 4920 - BS EN 24920 - BS 3702 - GB/T 4745 - AATCC 22 - M&S P23 - NEXT 23 Applications:

Spray Rating Tester is used to determine the surface wetting resistance of fabrics.

Features:

1 - The instrument structure is simple, mainly by the main frame, funnel, nozzle, sample holder and sample holder; 2 - Nozzle have a total of 19 aperture evenly distributed, the aperture required by the standard custom.

250ml of water poured into the funnel can flow out of the nozzle within 25-30s; 3 - The racks on the upper edge of the racks are at a 45 ° angle to the horizontal; 4 - The center of the upper edge of the sample holder ring, ie the distance from the center of the sample to the nozzle, is 150 mm.

Parameters:

1 - Structure: stainless steel; 2 - Surface treatment: painting; 3 - Dimensions: 230 × 250 × 500mm (length × width × height); 4 - Weight: 5kg (11lb).
