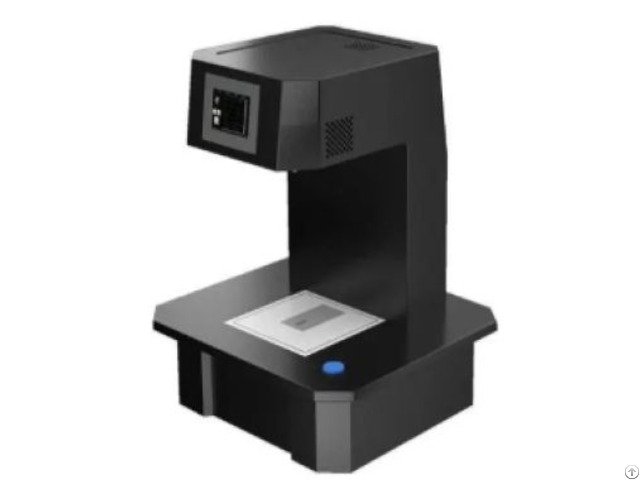

Textile Thermal Insulation Property Chamber - China

Standard

GB/T 41560-2022 (China): Specifies thermal resistance testing protocols for protective clothing and industrial fabrics.

BS 6526: 1998 (UK): Defines methodologies for evaluating the thermal insulation properties of textiles under controlled conditions.

ISO 11092: Additional compliance for physiological comfort testing of heat-resistant materials.

Product Advantages

Dual-Sensor Accuracy: Simultaneous sample plate and heating block temperature monitoring (±0.1% precision).

Variable Speed Control: Adjustable brass cylinder velocity (1–60 mm/s) for dynamic impact testing.

Bi-Directional Safety: Automatic polyethylene shield deployment (80 mm/s) prevents operator exposure.

Wide Temperature Range: -5°C to 180°C operation for extreme condition simulations.

Global Compliance: Pre-configured GB/T and BS protocols streamline CE/SGS certification.

Compact Footprint: 540 × 380 × 500 mm benchtop design suits QC labs and R&D facilities.

Product Features

Brass Impact Cylinder: Calibrated 3.000 ±10 g weight with dual-zone temperature sensing (2.5 mm from base).

Precision Temperature Control: 0.1°C resolution PID system maintains stable test conditions.

Sample Alignment System: 70 mm diameter specimen holder with vacuum suction for wrinkle-free placement.

High-Speed Data Logging: 100 kHz sampling rate captures transient thermal events.

Interchangeable Shields: Polyethylene guard plates (200 × 250 × 15 mm) for operator protection.

Intuitive Touchscreen: Pre-loaded GB/T 41560/BS 6526 test sequences with real-time curve plotting.

Accessories

Brass Impact Assembly: Tapered cylinder (3.000 ±10 g, ±0.02 mm dimensional tolerance) Dual K-type thermocouples (0–260°C range, ±0.1% accuracy) Sample Holder Kit: Vacuum suction specimen platform (Ø70 mm) Non-stick PTFE coating prevents thermal bridging Safety System: Motorized polyethylene shield (200 × 250 × 15 mm) Emergency stop button with interlock Calibration Bundle: NIST-traceable temperature standard Velocity verification gauge Operator Kit: Insulated tweezers Sample cutting die (Ø70 mm) Software Suite: ThermalGuard Pro for automated report generation 21 CFR Part 11-compliant audit trail Technical Parameters

Parameter Specification

Sample Size Ø70 mm (circular)

Temperature Range -5°C–180°C (±0.5°C accuracy)

Temperature Resolution 0.1°C

Brass Cylinder Specs 3.000 ±10 g

Cylinder Velocity 1–60 mm/s (adjustable)

Safety Shield Deployment 80 mm/s (automatic at 60°C threshold)

Data Sampling Rate 100.000 samples/second

Power Supply AC 220V ±10%, 50Hz, 600W

Dimensions (L×W×H) 540 × 380 × 500 mm

Weight 40 kg (net)

Operating Environment 10°C–40°C, <85% RH

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
