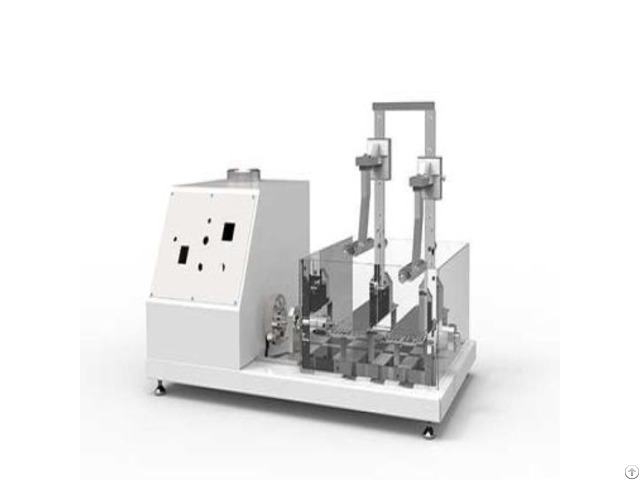

Finished Shoes Sole Bending Tester - China

Finished shoes sole bending tester is used to test shoe stiffness/rigidity by flex shoe to certain angle by certain force.

The shoe bending stiffness test is a necessary test before outsole flexing test as per ISO 20344 - Footwear which requires force (30±0.5)N to flex lower than 45° from horizontal is not suitable to test on outsole flexing tester.

Standards

ISO-20344 - ISO 17707-2005 - GB/T20991-2007 - QB 2885-2007 - AS/NZS 2210.2 section 8.4.1 Principle

This shoe rigidity is a shoe flexing tester.

Clamp the shoe forepart on the machine and apply a force of (30±0.5)N and flex the sample at a speed of (100±10)mm/min until the force has been exerted.

Then to measure the angle at this point.

Specification

Model UI-FT25

Capacity 200N

Speed 100mm/min

Flex Plate 315mm

Bending Position 1/3 of finished shoe

Sample Size French standard: Size 39 - 42 ; British standard : Size 6 - 8

Angle Resolution 0.1°

Test Required Force 30N

Power 1∮AC 220V 50/60HZ

Standard ISO-20344, ISO 17707-2005 - GB/T20991-2007 - QB 2885-2007 - AS/NZS 2210.2 section 8.4.1
