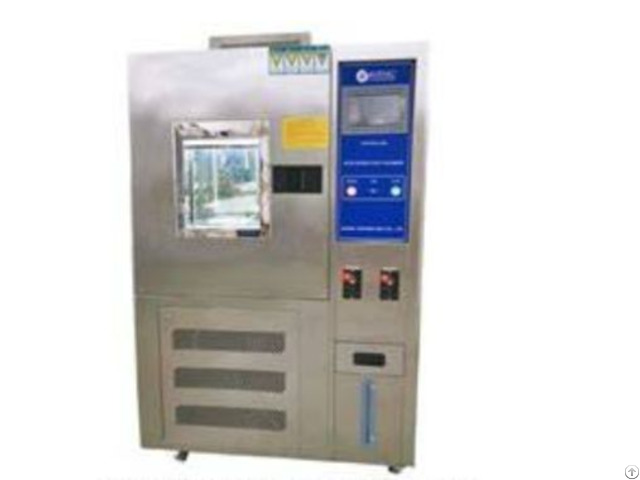

Ozone Test Chamber Std Ac22 - China

Feature

Whole chamber inside and gripers made up of stainless steel, anti-corrosion.

Outside of the chamber is baking finish (can choose SUS 304 stainless steel) Whole machine equipped with a safety protection system, the end of the test automatically stops Use low-noise, multi-wing centrifugal fan to supply air circulation to avoid any dead angle, which can evenly distribute temperature and humidity and ozone in the test area.

The test door and body are sealed with double layer ozone resistant high tensile silica gel to ensure the sealing of the test area With a transparent window, chamber inner with a lamp, used to observe changes of samples.

Test space option

Capacity 80L 150L 225L 408L 800L 1000L Inside dimension (W×H×D, cm) 40×50×40 50×60×50 50×75×60 60×85×80 100×100×800 100×100×100 Outside dimension (W×H×D, cm) 95×136×94 100×146×104 100×161×117 110×171×137 150×186×137 150×186×157 Key Specification

Model STD-AC22 Ozone Test Chamber Ozone concentration 0～1000 PPHM Ozone concentration deviation ≤10％ Chamber temperature 0～80℃, can be set Chamber humidity 20%~98%, can be set Specimen frame rotation velocity 0～50mm/s Chamber gas-flow rate 8-16mm/s Material of inner surface SUS304 mirror finished stainless steel Material of outside surface baking finish surface or SUS304 stainless steel, option
