12pins Mini Single Ended Fiber Optic Switch - China
price: 100.00 Dollar US$
Product Description

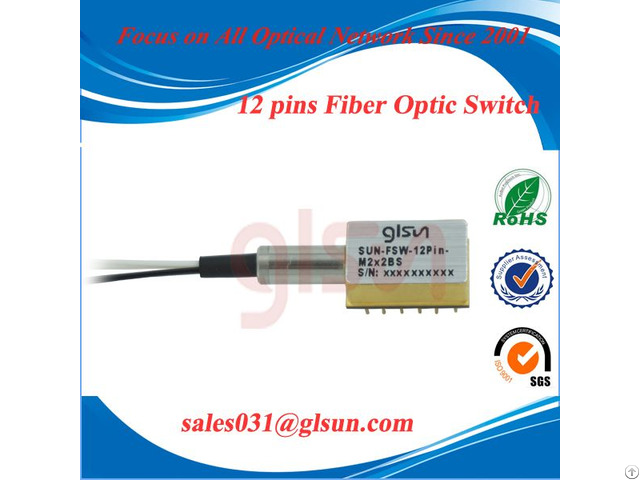

SM Latching Non-latching 12 Pins Mini single-ended Fiber Optic Switch
Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
Application
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
Description of Fiber Optical Switch
In telecommunication, an optical switch is a switch that enables signals in optical fibers or integrated optical circuits to be selectively switched from one circuit to another.
Optical switching technology is driven by the need to provide flexibility in optical network connectivity.
Prime applications are optical protection, test systems, and remotely reconfigurable add-drop multiplexers.
Specifcation
SM Latching Non-latching 12 Pins Mini single-ended Fiber Optic Switch - Specification
Parameters
Unit
SUN-FSW-12Pin
Wavelength Range
nm
1260 ~ 1650
Test Wavelength
nm
1310 / 1550
Insertion Loss 1, 2
dB
≤1.0
Return Loss 1, 2
dB
≥ 50
Crosstalk 1
dB
≥ 55
PDL
dB
SM≤0.10
Repeatability
dB
≤±0.05
Operating Voltage
V
3 or 5
Durability
Cycles
≥ 10 Million
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
℃
0 ~ +70
Storage Temperature
℃
-40 ~ +85
Relative Humidity
%
5 ~ 95
Dimension
mm
(L)17.3×(W)10.4×(H)7 .
85 ±0.2
Note:
1 Within operating temperature and SOP.
2 Excluding Connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 23, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
