Cheap Price 96 Core Fc Sc St Lc Ftth Made In China Fiber Optic Patch Panel Termination Box Odf - China

price: 32.00 Dollar US$

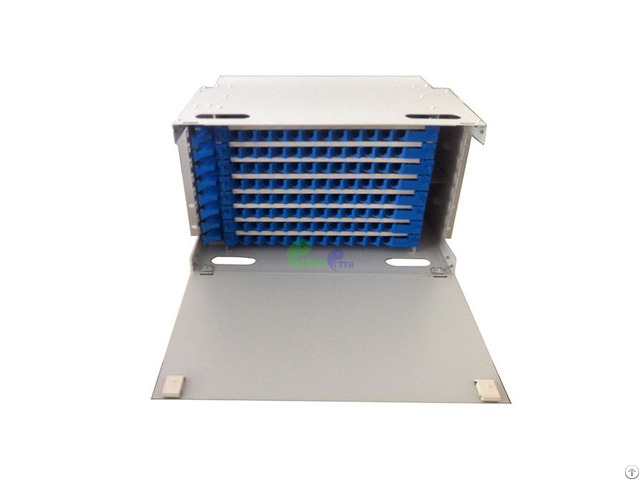

Cheap Price 96 Core Fc Sc St Lc Ftth Made In China Fiber Optic Patch Panel Termination Box Odf

Products Photos Catalog Core Ftth Fiber Optic Photos Catalog

Generally, the ODF unit box is a necessary part of the indoor optical distribution frame.

12 cores fusion splicing and distribution module plays the main role and its function is splicing, fiber storage and protection.

A completed ODF unit will be with adapter, pigtail and accessories like splice protection sleeve, nylon tie, snake like tube, screw.

Material: Cold Reduced Electrolytic Tinplate.

Body: 1.1mm, front plate 1.5mm Products specification: ODFSB12: Capacity: 12 fibers Dimensions: 482*300*235mm Features 19’ standard mounting, available for all kinds of rack and cabinet.

Metal, static electric plastic sprayed.

Neat appearance, reasonable structure.

With cable fixed and protection function; With functions of fiber optic cable terminating; All are designed as modules; all operation could be done at the front side of the box.

Flexible installation.

Convenient for operation and maintenance.

Designed as a drawer.

This could be pulled out and pushed easily.

A unit with splice and distribution integrated.

Suitable for both ribbon and bunch fiber cables.

Each splice trays can be clamped with 12FC, SC, ST, LC(Duplex) adapters/30° oblique installation, preventing eyes form harm of laser and ensuring the fiber bending radius.

Operation and storage temperature: -25℃ - +55℃ Dielectric intensity: ≥3KV(DC)/1minNo breakdown, no arcing Insulation Resistance: ≥1000M&/500V(DC) Shelter plate of fiber bending radius≥40mm


Company Contact:


  • Phone: 8618682182828

  • Address: 9F No 2 Bldg, Guole Tech park, No.1 Lirong Rd,Dalang street,Longhua District, Shenzhen , GuangDong , China

  • Email: Email


Published date: April 2, 2020

  • Business Description: OMC Is a 10years expreience & professional manufacturer of fiber patch cable, Pigtails.

    Our products included SC,LC,FC,ST,E2000,MPO,MTP ,MTRJ，D4，Din.
