Glsun 1x2g Fiber Optical Switch - China
price: 100.00 Dollar US$
Product Description

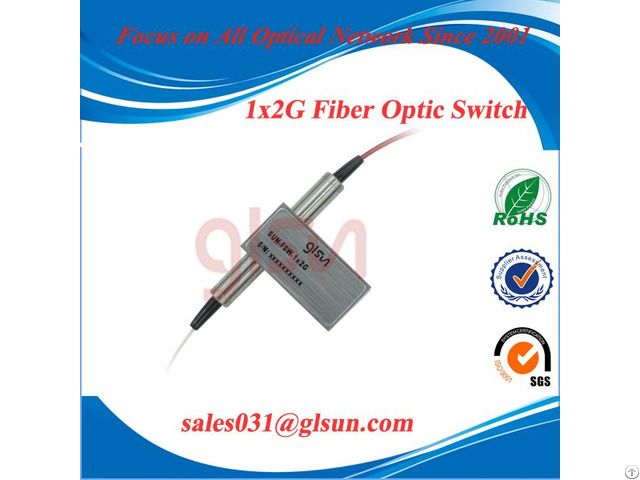

GLSUN 1x2G Fiber Optical Switch
Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching Applications ·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
·Network Security and Monitoring Specification
GLSUN 1×2G Fiber Optical Switch - Specification
Parameters
Unit
SUN-FSW-1×2G
Wavelength Range
nm
850±40 / 1300±40
1260 ~ 1650
Test Wavelength
nm
850 / 1300
1310 / 1550
Insertion Loss 1, 2
dB
Typ: 0.6 Max: 0.8
Return Loss 1, 2
dB
MM ≥ 30 SM ≥ 50
Crosstalk 1
dB
MM ≥ 35 SM ≥ 55
PDL
dB
≤0.05
WDL
dB
≤0.25
Repeatability
dB
≤±0.02
Operating Voltage
V
3 or 5
Durability
Cycles
≥ 10 Million
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
℃
-20 ~ +70
Storage Temperature
℃
-40 ~ +85
Relative Humidity
%
5 ~ 95
Weight
g
13
Dimension
mm
(L)27.0×(W)12.6×(H)8 .
2 ±0.2
Note:
1 Within operating temperature and SOP.
2 Excluding Connectors.
