Dual Band Omni Mimo Four Ports Antenna - China

price: 38.50 Dollar US$

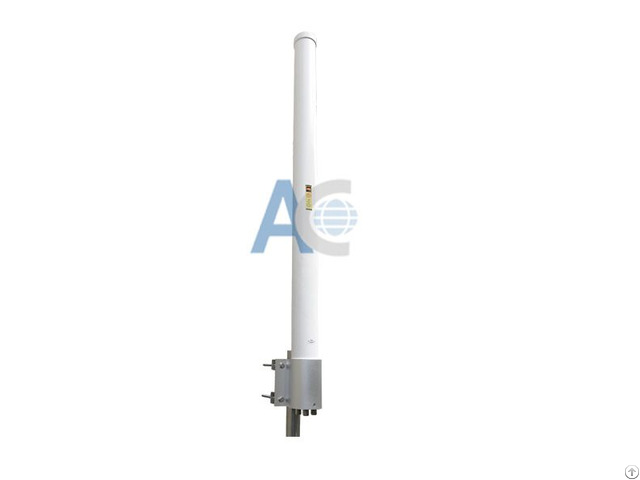

Dual Band Omni Mimo Four Ports Antenna

Products Photos Catalog Dual Band Omni Mimo Photos Catalog

Electrical Frequency Range 2X2400-2500&2X4900-58 00MHz

Band width 100/900MHz

Gain 9dBi

V.S.W.

R ≤1.5

Radiation Omni-direction

Horizontal Beam width 360°

Vertical Beam width 21°

Polarization Vertical & horizontal Lightning Protection DC Grounded

Maximum Input Power 100W

Impedance 50Ώ

Connector 4xN Female

Antenna Radome Material PVC

Mount way Pole

Diameter of Installation Pole Ø30~Ø50mm

Mechanical Dimensions Φ75x1200mm

Weight 2.5KG

Operating Temperature -40℃ to+80℃

Rated Wind Velocity 241Km/h

RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: December 14, 2018

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
