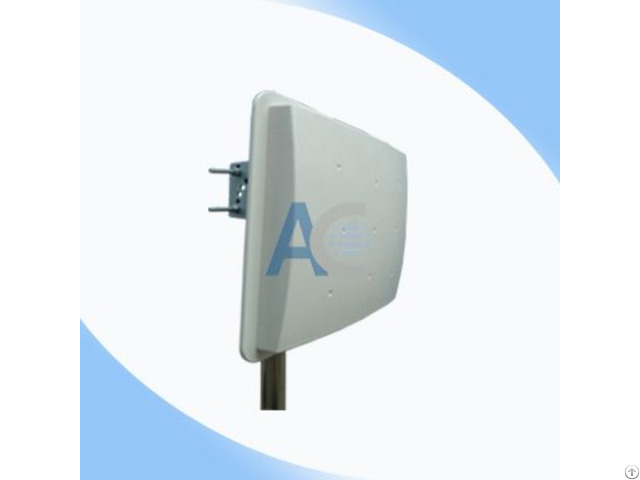

Rfid 902 928mhz 9dbi Panel Reader Antenna - China
price: 10.00 Dollar US$
Electrical Frequency Range 902-928MHz
Band width 26MHz
F/B Ratio ≥20dB
Gain 9dBi
V.S.W.
R ≤1.5
Radiation Direction
Horizontal Beam width 60° Vertical Beam width 70°
Polarization Circular or Linear
Lightning Protection DC-Grounded
Maximum Input Power 100W
Impedance 50Ώ
Connector N Female
Antenna Radome Material ABS
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm Mechanical Dimensions 255X255X35mm
Weight 900g
Operating Temperature -40℃ to+70℃
Rated Wind Velocity 241km/h
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: May 26, 2017
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
