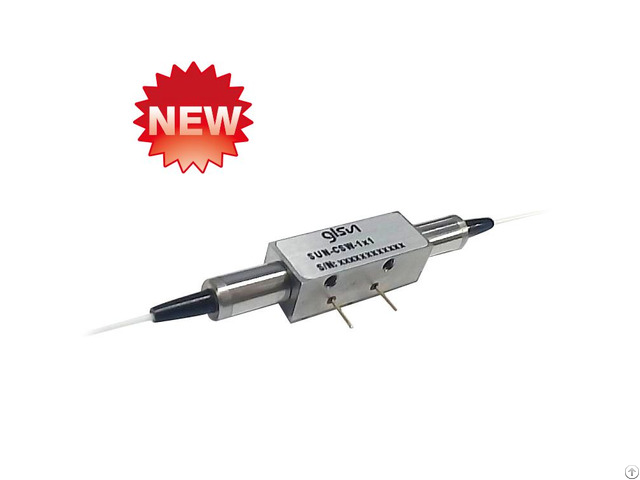

Magneto Optical Switch Single Stage 1x1 - China
price: 100.00 Dollar US$
Magneto Optical Switch Single Stage 1X1 - Features
High switching speed
Better durability
High reliability
Low voltage drive
Fail-safe latching
GLSUN Single Stage 1X1 Magneto Optical Switch - Applications
Optical channel blocking
Configurable Add/Drop
System monitoring, Test&measurement
Fiber-optics sensing system
GLSUN Single Stage 1X1 Magneto Optical Switch - Specifications
1x1
Wavelength Range: 1520~1580nm
Test Wavelength: 1550nm
Insertion Loss 1, 2: 0.8dB
Return Loss ≥50dB
Crosstalk ≥20dB
PDL≤0.2dB
Repeatability≤±0.01dB
Operating Voltage: 2.5V
Durability≥ 30 Bllions Cycles
Switching Time≤100μs
Switching Type: Latching n/a
Optical Power≤500mW
Operating Temperature: -5~ +70 ℃
Storage Temperature: -40 ~ +85℃
Relative Humidity: 5 ~ 95%
Fiber Type: G657A1
Dimension: (L )18x(W)7.3x(H)6mm
Note:
1 Within operating temperature and SOP.
2 Excluding connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: August 30, 2016
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
