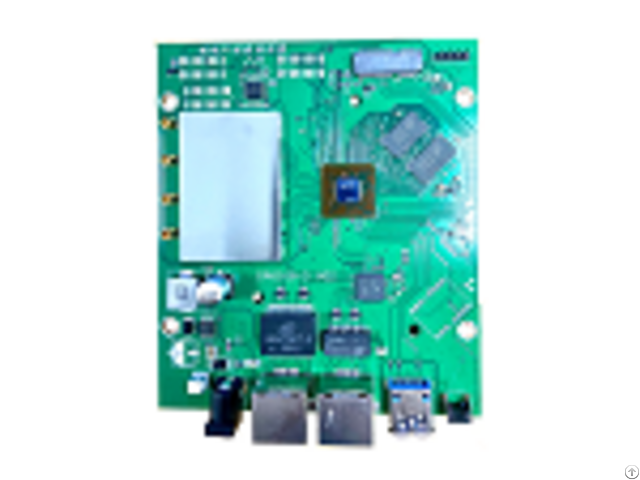

Dr6018 S V02 Support Openwrt  Ipq6010  802 11ax  2x2 2 4g And 5g  - China

Dr6018-s ipq6010/ipq6018/ipq6000

quad-core arm 64bit a53 @1.8ghz processor

1gb ddrl3l system memory

8mb nor flash, 256mb nand flash

supports dynamic frequency selection (dfs)

2x2 on-board 2.4ghz radio, up to 573mbps physical data rate

2x2 on-board 5ghz radio, up to 1201mbps physical data rate

absolute maximum rating parameter rating unit

supply voltage 24v~48v(dc jack) v

operating temperature range -40 to +70 ºc

storage temperature range -45 to +105 ºc

operating humidity range 5 to +95 (non-condensing) % hardware specifications symbol parameter

cpu qualcomm-atheros ipq601 0

cpu frequency quad-core arm 64 bit a53 @1.8 ghz processor

system memory 1gb (2x 512mb) ddr3l 16-bit interface with 32-bit memory bus design

ethernet port 1 x 1gbps ethernet ports & poe 1x 1gbps ethernet ports

ngff slot m.

2 (ngff) “e key” socket with minipcie 3.0(for wifi module)

sd card slot 1x sd card slot(option)

usb /header 1x usb 3.0 port(option)

poe 24v~48v passive poe/active poe(suport 802.3bt)

dc jack 24v~48v power supply

led header 2.0 pitch pin header

serial port 1x serial port 4 pin connector

wireless on-board 2x2 2.4ghz mu-mimo ofdma 802.11b/g/n/ax, max 23dbm per chain

on-board 2x2 5ghz mu-mimo ofdma 802.11a/n/ac/ax, max 20dbm per chain

4 x mmcx connectors

nor flash 8mb

nand flash 256mb

ddr 256mb~512mb

dimension 125mm x 105mm x 20mm
