Dr882，radio Card Support 11ac An Wifi - China

price: 200.00 Dollar US$

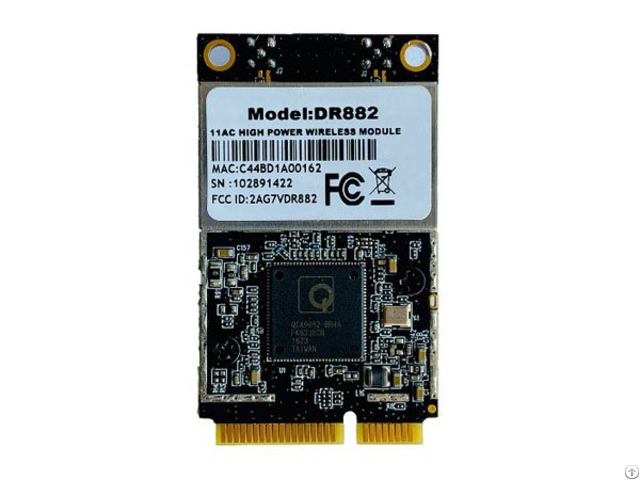

Dr882，radio Card Support 11ac An Wifi

Products Photos Catalog Dr882 Radio Card 11ac Photos Catalog

Featuring with industrial-grade Atheros’s QCA9882 chipset

Integrated with 2x 2 5G high power Radio Card

4.940GHz to 5.825GHz Frequency Range

2 x 5G MMCX Connectors

20MHz/40MHz/80MHz Bandwidth

Support 11AC/AN

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Absolute Maximum Rating Parameter Rating Unit

Supply Voltage 3.3V(MINIPCIE) V

Operating Temperature Range -40 to +60 ºC

Storage Temperature Range -65 to +105 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) % Hardware Specifications Symbol Parameter

CPU QCA9882

Antenna Connector 2 x 5G MMCX connectors

ROHS Compliance YES

Dimension 50mm x 30mm x 16mm Radio TX Specifications Operating Mode Data Rate Power Tolerance 1 Chain 2 Chains 802.11a 6 Mbps 25dBm 28dbm ±2dB 54 Mbps 21dBm 24dbm ±2dB

802.11n HT20 MCS0, MCS8 25dBm 28dbm ±2dB MCS7, MCS15 20dBm 23dbm ±2dB

802.11n HT40 MCS0, MCS8 25dBm 28dbm ±2dB MCS7, MCS15 20dBm 23dbm ±2dB

802.11ac MCS0, MCS10, MCS20 25dBm 28dbm ±2dB MCS9, MCS19, MCS29 17dBm 20dbm ±2dB Radio RX Specifications Operating Mode Data Rate Sensitivity

802.11a 6 Mbps -96dBm 54 Mbps -78dBm

802.11n HT20 MCS0, MCS8 -92dBm MCS7, MCS15 -73dBm

802.11n HT40 MCS0, MCS8 -90dBm MCS7, MCS15 -70dBm


Company Contact:


  • Phone: 17366272175

  • Address: 116 ChengYang Road, XiangCheng District, SuZhou City, JiangSu Province, China

  • Email: Email


Published date: January 10, 2022

  • Business Description: Wallys Communications (Suzhou ) Co., LTD With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards.

    In the complex market, Wallys products stand out and are affirmed by partners.

    From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win-win cooperation.
