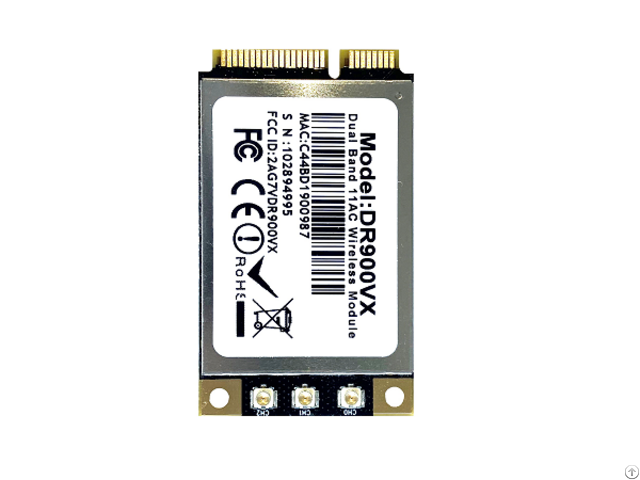

Dr900vx，qca9880 802 11ac Dual Band - China

.

Qualcomm-Atheros QCA9880 chipset

2.4GHz max 26dBm & 5GHz max 25dBm output power

IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n

3x3 MIMO Technology, up to 1.3Gbps

Mini PCI Express edge connector

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio

Combining (MRC), Space Time Block Code (STBC)

Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards

Supports Dynamic Frequency Selection (DFS)

FCC, CE and IC Certification Specifications Symbol Parameter

Chipset QCA9880

Host Interface Mini PCI Express 1.1 Standard

Antenna Connector 3 x UF.

L

Frequency Range 2.4GHz: 2.412GHz to 2.472GHz

5GHz: 4.920GHz to 5.825GHz

Operating Voltage 3.3V DC

Power Consumption 5W(Max)

Modulation Techniques OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM

Environmental Temperature Operating: -40°C to 70°C, Storage: -40°C to 90°C

Environmental Humidity, non-condensing Operating: 5% to 95%, Storage: Max.

90%

ROHS Compliance YES

Dimensions (W×H×D) 30.0mm × 50.9mm × 3.2mm
