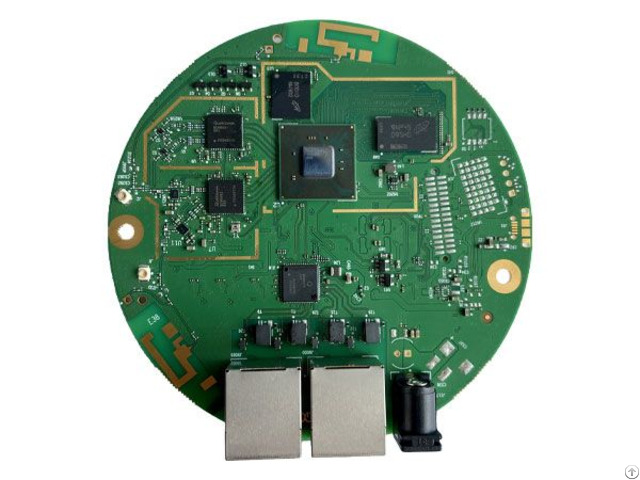

Dr6000 Ipq6000 802 11ax 2x2 2 4ghz And 5ghz - China

Qualcomm-Atheros IPQ6000

Quad-core ARM 64 bit A53s 1.2GHz processor

2.4GHz, 2x2 MU-MIMO OFDMA Technology, up to 573Mbps

5GHz, 2x2 MU-MIMO OFDMA Technology, up to 1201Mbps

2 on board radios (Dual Band Concurrent Radio)

Supports Dynamic Frequency Selection (DFS)

Absolute Maximum Rating Parameter Rating Unit

Supply Voltage 12 V

Operating Temperature Range -20 to +70 ºC

Storage Temperature Range -45 to +90 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) % Hardware Specifications Symbol Parameter

CPU Qualcomm-Atheros IPQ6000

CPU Frequency Quad-core ARM 64 bit A53 @1.2GHz processor

System Memory DDR3L 512MB 16-bit interface

Nand Flash 128MB

NOR Flash 16MB

Ethernet Port 2x 1Gbps Ethernet Ports

DC Jack Input 1x DC Jack Connector: 12V

Power Consumption(Board Only) 1TD

On Board Radio 2 radios (Dual band concurrent radio)

Wireless On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 20dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 2x U.

FL Connectors, diplexer allows dual band concurrent operation

Frequency Range 2.412~2.472GHz, 5.150~5.825GHz

2.4GHz Data Rate 2x2 MU-MIMO OFDMA Technology, up to 573Mbps

5GHz Data Rate 2x2 MU-MIMO OFDMA Technology, up to 1201Mbps

Modulation Techniques OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024QAM

LED 4x LED Indicators

USB /Header 1x MicroUSB 2.0 Port

Serial Port 1x Serial Interface 12 Pin Connectors

Certification TBD

Humidity Operating: 5% to 95% (non-condensing) Storage: Max.

90% (non-condensing)

Temperature Range Operating: TBD Storage: -40ºC to 90ºC

Dimension (Diameter x Height) 100mm x 23.5mm (Without Heatsink)
