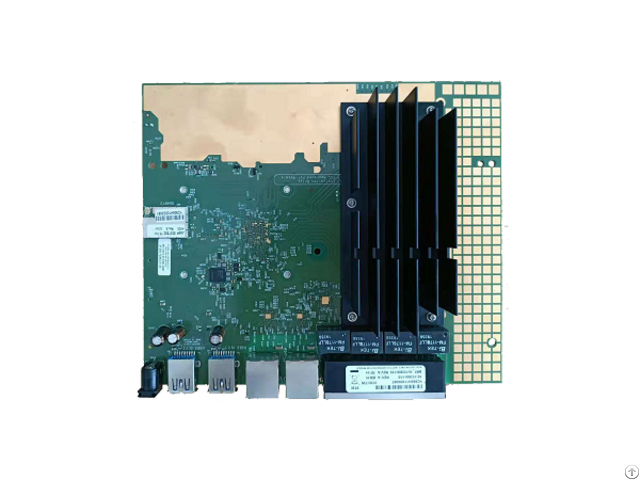

Dr8072a Hk09 Support Wifi 6e Card Ipq8072  4x4 2 4g And 5g  802 11ax - China

Qualcomm Atheros IPQ8072A AR Quad Core CPU On-board 5GHz radio, up to 2475 Mbps physical data rate 8 MB NOR Flash, 256MB NAND Flash On-board 2.4GHz radio, up to 1147Mbps physical data rate Support 11ax TX Beamforming Support 11ac/ax MU-MIMO DL and UL Support OFDMA DL and UL Tri-band support with 5G SBS (4x4/5GHz ) + 4x4/2.4GHz Supports Dynamic Frequency Selection (DFS) Absolute Maximum Rating Parameter Rating Unit

Operating Temperature Range -20 to +70 ºC

Storage Temperature Range -40 to +90 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) % Hardware Specifications Symbol Parameter

CPU Qualcomm Atheros Quad Core ARM Cortex 64-bit A53 Processor IPQ8072A 2.2GHz CPU

CPU Frequency Derived from Qualcomm Atheros AP.

HK09

System Memory 1x 512MB, DDR4 2400MHz 16-bit interface

Frequency Range 2.412~2.472GHz, 5.150~5.825GHz

MiniPCIe Slot 1x MiniPCIe Slot with PCIe 3.0

Modulation Techniques OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Environmental Temperature Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC

Flash NOR Flash: 8 MB

NAND Flash: 256MB

Wireless On-board 4x4 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 17dBm per chain

On-board 4x4 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 17dBm per chain

8x U.

FL Connectors

Reset Buttons 1x S/W Reset Button

DC Jack Input 1x DC Jack Connector: 12V

Interface 4x 1Gbps Ethernet Port, 2x 2.5Gbps Ethernet Port

2x USB 3.0 Port

1x JTAG 20 Pin Connector

1x Serial Port 4 Pin Connector

LED 2x RGB LED Indicators

Power Consumption TBD
