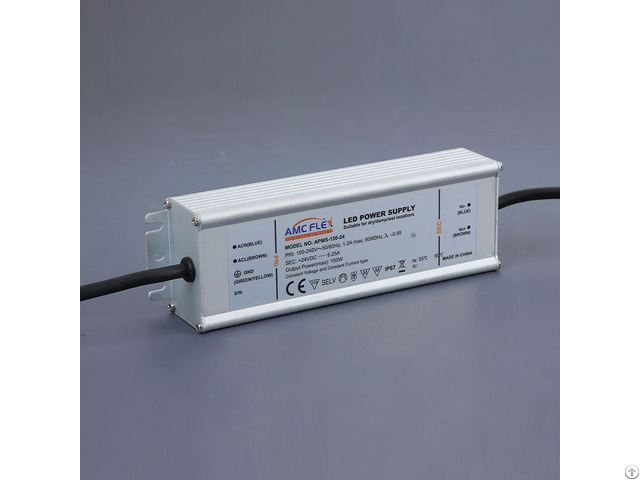

150w 24v 6 25a Waterproof Led Power Supply - China

Model: APMS-150-24

Technical Specs:

Output Parameters

Rated Output voltage: 24VDC

Rated Output Current: 6.25A

Rated Output Power: 150W Max

Efficiency>92%

Line Regulation: ±0.5%

Load Regulation: ±1.5%

Voltage tolerance: ±3% 2 - Input Parameters

Rated Input voltage: 200-277VAC

Input voltage range: 176-305VAC, 47-63hz

Input Current Max: 1.0A

Inrush Current<70A

Power Factor>0.95

THD<15% 3 - Protection

Overload

Short Circuit

Over voltage

Over Temperature 4 - Environment

Operating Temperature range: -40 to +80℃

Storage Temperature range: -45 to +80 ℃

Humidity: 10～95%

Waterproof Level: IP67

5 - Safety Standards

UL8750, IEC/EN61347-1, EN61347-2-13, EN62368, GB19510.1, GB19510.14, IP67 Approved

Withstand voltage: I/P-O/P: 3KV EMI, EMS

EN55015(CISPR15), GB17743, EN61000-3-2, Class C, EN61000-4-2, 8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4, EN61000-4-5, 4KV/Line-Line 6KV/Line-Earth, EN61000-4-6 6 - Others

MTBF>200Khours

Dimension: 180(L)*63 (W)*40(H)mm

Packing: 0.8KG/PC, 350x310x260mm, 16pcs / 14.3 Kg /0.02CBM/CTN

Company Contact:

• Posted By: CHANGZHOU AMC FLEX TECHNOLOGY CO LTD

• Phone: 777123456

• Address: no8,huashan road, xinbei area, changzhou , jiangsu , China

• Email:

• Website: https://www.amcflex.com/

• Business Description: research, developing, manufacturing waterproof LED Power Supplies.

  Research and development is our strong strength we can realize your ideas to real products.

  Covered with modern production facilities, professional labors, strictly QA/QC inspectors, we are striving to provide the best quality and most durability products.

  All of our products Meet IEC60950,UL60950,EN55015, EN61347,EN6100-3-2 quality standards.

  Exported to over 15 countries with great reputations.

  Main Lines:

  iP67 CC/CV Waterproof LED Drivers, Switching power supplies, Interior slim power Supplies, AC-DC adapters, DC-DC power supplies.

  MISSION:

  TO deliver innovative light solutions by anticipating our customers needs.

  By understanding the lighting application, we design, test, and deliver comprehensive solutions that anticipate the customers total cost of different project and provide a positive experience.

  We collaborate with our partners to leverage technology, focus on research, and continuously improve our production, processes, and products.

  VISION

  We are pioneers in providing LED power supply solutions with a vision of enlightening the world.

  Developing most effective, high quality and energy-saving products for indoor and outdoor led lightings

  LED tunel lights, LED floodlights, led projector,led wall washer lights, LED linear lighting.

  illumina ted signs, slim light box, facade lighting, led growlights.
