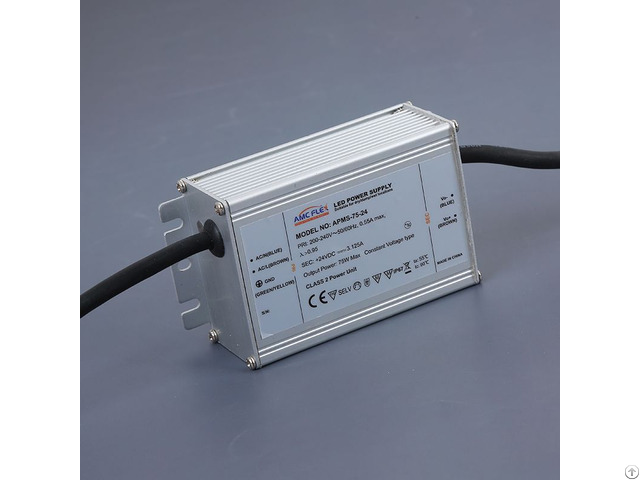

75w 24v Floodlight Led Driver - China

Model: APMS-75-24

Technical Specs:

Output Parameters

Rated Output voltage: 24VDC

Rated Output Current: 3.125A

Rated Output Power: 75W Max

Efficiency>90%

Line Regulation: ±0.5%

Load Regulation: ±1.5%

Voltage tolerance: ±3% 2 - Input Parameters

Rated Input voltage: 200-277VAC

Input voltage range: 176-305VAC, 47-63hz

Input Current Max: 0.55A

Inrush Current<20A

Power Factor>0.95

THD<15% 3 - Protection

Overload

Short Circuit 4 - Environment

Operating Temperature range: -40 to +80℃

Storage Temperature range: -45 to +80 ℃

Humidity: 10～95%

Waterproof Level: IP67 premium range of power supplies for LED Strip lights

Quality Insurance: Five times function test

1 - Function test: check if there is any dry/empty welding or missed components

2 - Hi-pot test: 3KVac/ 0.8S

3 - Function test: 100% Burn-in test 1-4hours depends On output power/

4 - Function test: 100% re-test after burn-in test

5 - QC: finished product sampling, AQL 0.65 Used for led strips, led modules, light box, illuminated signs, linear lighting projects, led wall washer lights, led floodlights, fishing lights.
