300w 24v Ip67 Selv Rohs Ce Waterproof Led Power Supply - China

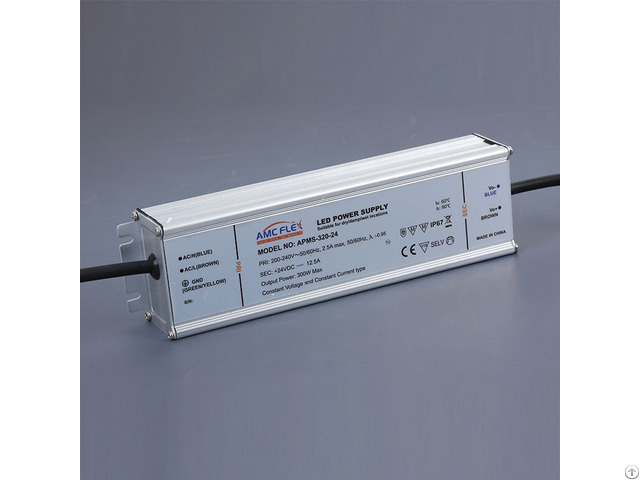

Model: APMS-320-24

Technical Specs:

Output Parameters

Rated Output voltage: 24VDC

Rated Output Current: 12.5A

Rated Output Power: 300W Max

Efficiency>92%

Line Regulation: ±0.5%

Load Regulation: ±1.5%

Voltage tolerance: ±3% 2 - Input Parameters

Rated Input voltage: 200-277VAC

Input voltage range: 176-305VAC, 47-63hz

Input Current Max: 2.5A

Inrush Current<70A

Power Factor>0.95

THD<15% 3 - Protection

Overload

Short Circuit

Over voltage

Over Temperature 4 - Environment

Operating Temperature range: -40 to +80℃

Storage Temperature range: -45 to +80 ℃

Humidity: 10～95%

Waterproof Level: IP67

5 - Safety Standards

UL8750, IEC/EN61347-1, EN61347-2-13, EN62368, GB19510.1, GB19510.14, IP67 Approved

Withstand voltage: I/P-O/P: 3KV EMI, EMS

EN55015(CISPR15), GB17743, EN61000-3-2, Class C, EN61000-4-2, 8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4, EN61000-4-5, 4KV/Line-Line 6KV/Line-Earth, EN61000-4-6 6 - Others

MTBF>200Khours

Dimension: 231(L)*63 (W)*40(H)mm

Packing: 1.4KG/PC, 350x310x260mm, 10PCS/15.5Kg/0.02CBM /CTN Features:

IP67 Waterproof LED Power Supplies IP67 waterproof suitable for use in damp locations and outdoors high efficiency long life and reliability.

Safe Protection

short circuit protection and overload protection.

Constant voltage output ensures the stability of the power supply.

Good-quality

Aluminum alloy metal housing is easy for heat dissipation and ensure stability.

Large Application

suitable for the Led Light, LED strip lights, Street Light, Fog-proof Light, Ceiling Lights, Frack Lights, Spotlight, Billboard, kitchen cabinet lights and LED landscape transformer and so on.
