O Grip Safety Grating Accessories - China

O-Grip Safety Grating Accessories For Easy Installation

O-Grip safety grating bolt washer seat to I-beam.

Bolt Washer Seat Bolt washer seat punched with oblong holes is designed for mounting the O-grip safety grating to I-beam or other anchoring cross members.

Field drilling is required.

J-clip is used to secure the O-grip safety planks to I-beam or other anchoring cross members without drilling holes.

In contrast with bolt washer seat, J-clip installation is quicker and simpler.

Items Number

P-bolt seat 1

Carriage bolt: 3/8"-16 1

Flat washer: 3/8" 1

Hex nut: 3/8"-16 1

Note:

Plank carriage bolt height = side channel height + 1".

Walkway carriage bolt: 5/16"-18 × 2".

O-Grip Safety Grating J-clip for securing plank grating to I-beam without drilling.

OGSA-02: J-Clip.

O-Grip safety grating mid support clips increase load carrying abilities.

Mid Clip Kit Mid clips are used at middle point of the O-grip plank grating to increase load carrying capabilities.

Kit includes mid clip and two sets of screws.

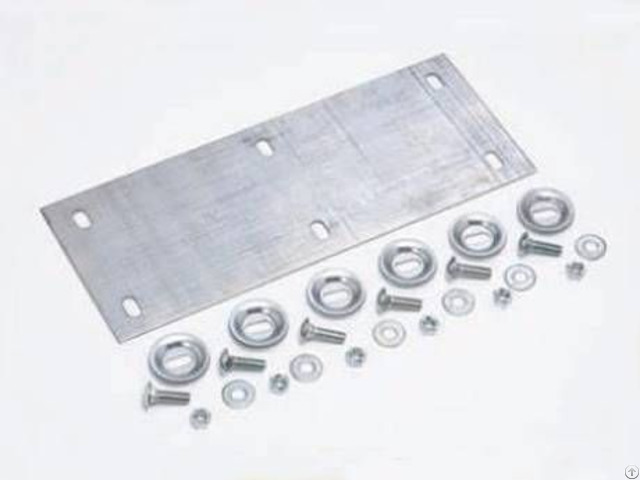

Surface splice plate When the width of walkway grating is greater than 12", surface splice plates are strongly recommended to connect butt ends of planks.

There are multiple surface splice plates for different widths including 18", 24", 30" and 36", and hardware is provided separately.

O-grip safety grating surface splice plate for wider uses.

OGSA-04: Surface Splice Plate.

O-Grip grating walkway splice plate.

OGSA-05: Walkway Splice Plate.

Walkway Splice Plate Walkway splice plate attached to the side channels is designed to help O-grip walkway gratings to reach any length.

Available for 24" and 30" walkway.
