Zhuote Platform Steel Grating - China

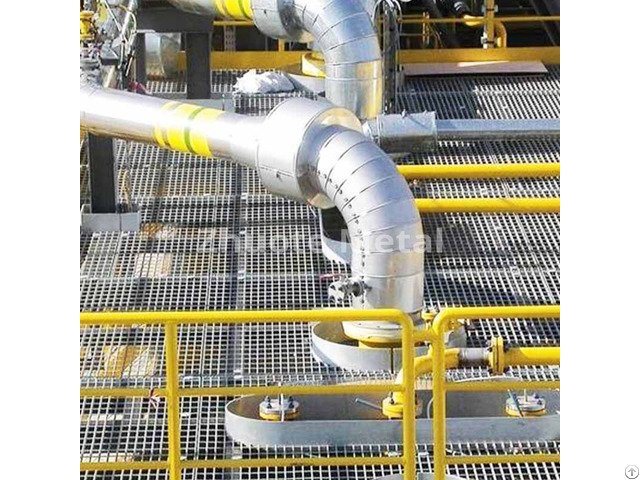

Platform steel grating, composed of several pieces of welded steel grating or press locked gratings are commonly installed in ships and industrial applications, such as refineries, power plants and offshore platforms.

Platform steel grating, composed of several pieces of welded steel grating or press locked gratings are commonly installed in ships and industrial applications, such as refineries, power plants and offshore platforms.

● metal grate platform.

● Carbon steel, galvanized steel or stainless steel material options.

● Walkways and stair treads can be supplied.

● Ideal for industrial applications.

● Wide range of configurations for choice.

● Special discount for large orders.

● Project reference can be supplied for your bid.

● ISO Certificated factory.

● CAD or 3D drawing can be supplied for your design and construction.

Grating Types Welded Steel Grating Press lock Steel Grating Surface Types Plain Grating Serrated Grating Custom Designs Cutout Toe plate Stair Treads

More information you can visit our website

No.

Item Description

1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm etc;I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etcUS standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.

2 Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etcUS standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc

4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc

5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating

6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

7 Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

8 Application -Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships;

-Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street;

-Platforms for oil extraction sites, car washing sites and air towers;

-Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength.
