Wet Shotcrete Machine For Tunnel Construction - China

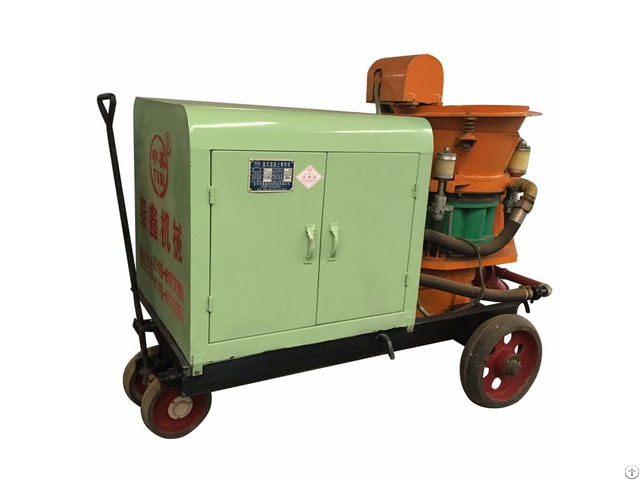

Wet and Dry-Mix Concrete Spraying Machine SSP Series Application:

SSP-7/9 is the universal machine for dry-and wet shotcrete application of slope stabilization and excavation support, mining, tunneling, culverts, underground construction, hydro-engineering.

Main Features:

1, Accelerator dosing system is designed to convey accelerator independently while accelerator dosage can be accurately measured and adjusted freely by dosing pump.

2, Special rubber lining on hydrocyclones can vibrate under air pressure so that concrete will not stick to chamber.

Smooth inner of chamber facilitates concrete conveying.

3, Stable performance, easy operation, low energy consumption, long service life, good spraying effect and environment friendly.

Technical Parameters

Technical Parameters SSP-7 Spraying capacity(m³/h) 7 Max.

spraying distance (m) Vertical15, Horizontal30

Concrete slump(cm) 8-15

Water cement ratio 0.55-0.65

Max.

grain size(mm) 15

Diameter of convey hose(mm) Φ57/Φ64

Working wind pressure(MPa) 0.3-0.6

Air consumption(m³/min) 8-12

Feeding height(m) 1.3

motor power(kW) 7.5+0.75+0.25 Dimensions(L × W × H)(mm) 1900×1050×1300 Weight(kg) 900 Henan Weibang Intelligent Technology Co., Ltd, located in Zhengzhou High-tech District of Henan province, China, is specialized in research and manufacture of shotcrete related equipment.

Since its establishment in 2006, it has been growing rapidly and developed a great reputation in the market.

We have obtained 33 utility model patent certificates, mine product safety sign certificates, and ISO quality management system certificate and CE.

Our main business include: shotcrete manipulators, automatic feeding shotcrete machines, all-in-one of mortar mixing and grouting machines, small and medium size concrete spraying machines, grouting machines, cement grout pumps, removable dedusting water mist cannon sprayers, rebar bending machines, rock drills, welding machine etc, which are widely used in mining, railway, highway, tunneling, subway, slope and hydro-power engineers.
