Multi Functional Crawler Excavator - China

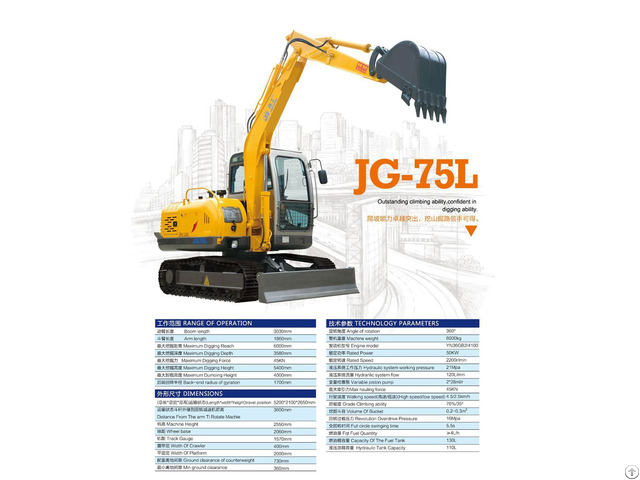

JG75L Tech specification of crawler excavator:

Range of operation

Boom length 3030mm

Arm length 1860mm

Maximum Digging Reach 6000mm

Maximum Digging Depth 3580mm

Maximum Digging Force 45KN

Maximum Digging Height 5400mm

Maximum Dumoing Height 4000mm

Back-end radius of gyration 1700mm

Dimensions

(Length*width*height)t ravel position 5200*2100*2650mm

Distance From The arm Tl Rotate Machie 3600mm

Machine Height 2550mm

Wheel base 2060mm

Track Gauge 1570mm

Width Of Crawler 400mm

Width Of Platform 2000mm

Ground clearance of counterweight 730mm

Min ground clearance 360mm

Tech performance and specification

Angle of rotation 360°

Machine weight 6000kg

Engine model YN36GB2/4100

Rated Power 50KW

Rated Speed 2200r/min

Hydraulic system working pressure 21Mpa

Hydranlic system flow 120L/min

Variable piston pump 2*28ml/r

Max Hauling force 45KN

Walking speed(High speed/low speed) 4.5/2.5km/h

Grade Climbing ability 70%/35°

Volume Of Bucket 0.2-0.3m3

Revolution Overdrive Pressure 16Mpa

Full circle swinging time 5.5s

Fqt Fuel Quantity ≥4L/h

Capacity Of The Fuel Tank 130L

Hydraulic Tank Capacity 110L
