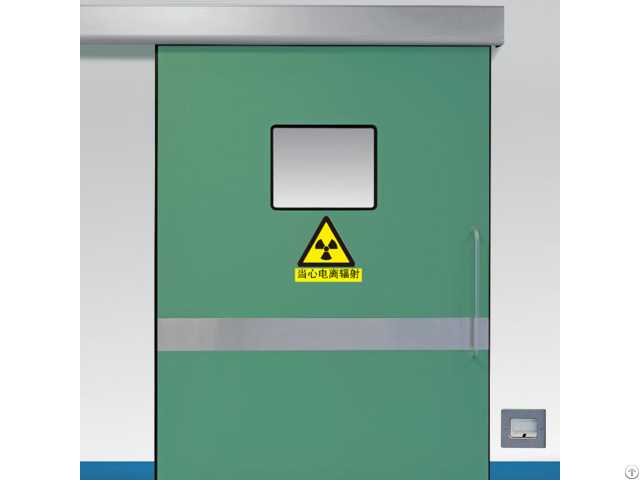

Hospital X Ray Shielding Automatic Sliding Door - China

Hospital X-ray Shielding Automatic Sliding Door Automatic Hospital Door manufacturer Hospital automatic hermetic door Application at hospital CT room, X ray room etc nuclear medicine room.

Lead sheet inside the door and wall frame to shield the X-ray to protect the doctor and patient against the harmful ray.

The protection rate is strictly abided by the GBZ/T147-202 X-ray Shielding Automatic Sliding Door Introduction, 1 - Door blade, *50-55mm aluminum honeycomb and 1mmbp - 3mmbp anti-radiation lead core faced both sides with Electro-galvanized steel with powder coating(can chose color as u like) or 1.0-2.0mm thickness 304 stainless steel

*Framed in anodized aluminum profiles with rounded edges in aluminum or brushed stainless steel.

2 - Door frames& Silicone rubber seal gasket

*Frame and counter frame in aluminum profile with rounded edges or welded 304 stainless steel suit the hospital door

*Silicone ubber seal gasket are assembled round in the door frame and around the hospial door panel to promise airtightness in the operation room.

3 - View Window

Apply double glazing of lead with round edges and gradient color, totally flush on both sides with the door panel

4 - Door Handle

*304 stainless steel bar handle or Reinforced polyamide or stainless steel flush pull handle

5 - Automatic Door Operator

*Exclusively anodized aluminum track for X-ray shilding room

*Exclusive 36V brushless motor and controller or Dunkermotoren motor to move the lead-lined door Hospital Door Technical Datas, Door model Single open

Steel panel thickness 2mm

Door panel thickness 50-55mm

Radiation equivalent Max 3mmpb

Standard size 2100mm*1400mm

Max capacity 250KG

Open speed(adjustable) 150mm-600mm/s

close speed(adjustable) 100-500mm/s

Activation foot sensor /hand sensor

Infill aluminum honeycomb&anti-radiat ion lead

Power supply 230VAC+10/-15%, 50/60Hz

Working temperature -20ºC to 50ºC

Airtightness standard GBZ/T147-2002 Founded in the 2012 year, KAST is a dynamic, respected, experienced and comprehensive automatic door automation factory.

At present, We are panasonic automatic door official distributor.

Has cooperation with Dorma, Tormax, Besam, Nabco.
