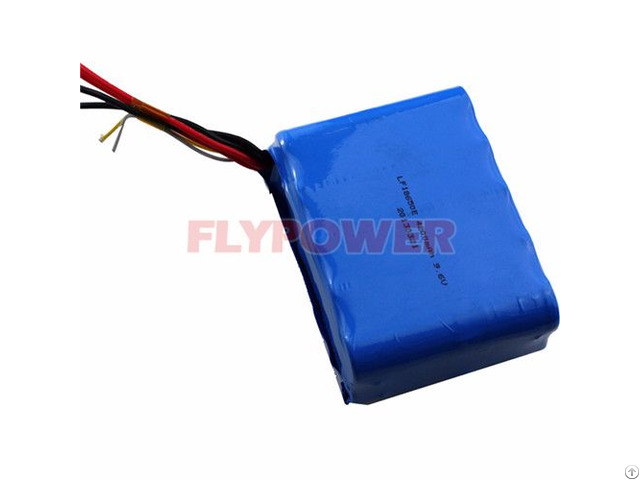

Lifepo4 Battery Pack 9 6v 4200mah 3s3p Of Flfc 18650e With Pcm - China

1 - Model: LiFePO4 Battery pack 9.6V 4200mAh(3S3P of FLFC-18650E with PCM).

2 - UN, RoHS, CE approved Polymer Li-ion Battery pack.

3 - LiFePO4 Battery pack OEM orders are welcomed.

4 - Customizes shapes, capacity, and voltage are accepted.

5 - Individual cells can be assembled in parallel or series into stacks as required by customers.

Feature

1 - Safety: Currently the safest Li-ion battery, CE UL approved, none fire, none explosive

2 - Environment friendly, no toxic material contained.

3 - Powerful: P type battery can discharge in 15C-20C.

4 - Low self discharge: ≤ 3%(monthly).

5 - Long life cycle, more than 2000 cycle in 0.5C-1C discharge

6 - No memory effect: Can be recharged any time, no reduction of capacity.

7 - Broad operation temperature -20---60 centigrade.

8 - Small in size and light in weight: Compare with our battery, 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery.

Application

1 - Electric Vehicle: Hybrid Electric Vehicle, Pure Electric Vehicle;

2 - Ebike, Escooter, Electric Golf Cart, Electric Tools, Lawn Mower, Vacuum Cleaner.

Electric boat, Elevator, Electric Wheelchair;

3 - UPS: For computer, Emergency Application, Medical Movable UPS;

4 - Solar Energy: Solat street lights, Solar LED Lights

5 - Telecom System: Communication Base.

LiFePO4 battery pack 9.6V 4200mAh (3S3P of FLFC-18650E with PCM)

Cell: LiFePO4

Model: 3S3P of FLFC-18650E

Nominal Voltage: 9.6V

Nominal Capacity: 4200mAh

Minimal Capacity: 4100mAh

Charging Method: CC/CV(Constant Current/Constant Voltage)

Charge Current: Standard charge : 0.2C(840mA)

Rapid charge : 0.5C(2100mA)

Charging Time: Standard charge : 8.0 hours (Ref.

)

Rapid charge : 4.5 hours (Ref.

)

ContinuousDischarge Current: 3C (12.6A)

Cut-off Discharge Voltage: 6V±0.05V

Overcharge Voltage 3.9±0.025V per cell

Over Discharge Cut Off Voltage 2.0±0.05V per cell

Short Circuit Protection Recover after removing the short circuit load or recharge

Dimensions(T.W.H.

) 38mm * 68.2mm*95mm
