Red 2835 Smd Led 0 2watt - China
price: contact company for price

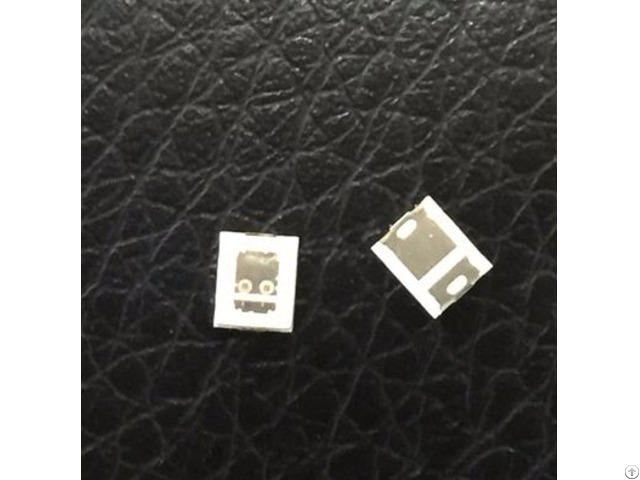

Red 2835 smd led
3.5mm*2.8mm *0.7mm SMT LED Thickness
Voltage: 2.2-2.4V
2 chips per led, Current: 60mA, Color: red
Power: 0.2watts/led, View Anglc: 120°
Wavelength: 620-625nm
Lumen: 6.8lm per led
Package：4000PCS/Reel Note:
We reeommend the reflow temperature 240℃±5℃.
the maximum soldering temperature
should be limited to 260°
Don’t cause stress to the silicone resin while it is exposed to high temperature.
Number of reflow process shall be 1 time.
Users are suggested the constant current source driver testing led.
Company Contact:
- Posted By: Shenzhen LED Color Opto Electronic Co., LTD
- Phone: +86 13670216169
- Address: 5F, Da Dongming Science and Technology Park, Yuequn Road,Gongming Town,Guangming New District,Shenzh, SHENZHEN , China
- Email:
Published date: December 29, 2019
- Business Description: Shenzhen LED Color Opto Electronic Co., Ltd.was established in 2012, we are a LED company integrating R&D, production, sales and service.
Mainly engaged in the production of high-quality addressable LED chips and flexible LED lighting strips
