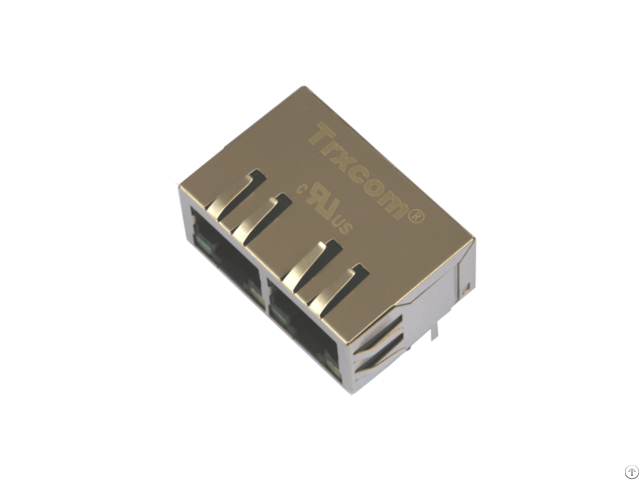

1000base Tx 1x2 Shielded Dual Port Transformer Magnetic Rj45 Connector Trjg26801adnl - China
price: 1.10 Dollar US$
1000Base-T RJ45 Jack
Tab down
With led with emi-finger
Led: Green & Yellow
1x2 Ports
Length= 21.30mm
No PoE function
Pin type: the solder
RoHs, UL, Reach, ISO9001: 2008
Free sample available for testing
1 - Meets 802.3 specification
2 - Connector Materials:
Housing Material: Thermoplastic PA46+30%G.
F UL94V-0
Contact material: Phosphor Bonze C5210R-EH Thickness= 0.35mm
Pins: Brass C2680R-H Thickness= 0.35mm
Shield: SUS 201-1/2H Thickness= 0.2mm
Contact plating: Gold 6 micro-inches min.
In contact area.
3 - Wave solder tip temperature: 265℃ Max, 5 Sec Max
4 - UL Certification: File Number E321120
Electrical Specification @25℃
1 - Turn Ratios(±3%): TX=1CT: 1CT RX=1CT: 1CT
2 - Inductance OCL: 350uH MIN @ 100KHz 0.1V 8mA DC Bias
3 - DCR: 1.2Ω MAX
4 - Insertion Loss: -1.0dB MAX @ 1-100MHz
5 - Return Loss:
-18dB MIN @1-30MHz
-15dB MIN @30-60MHz
-12dB MIN @60-100MHz
6 - Cross Talk:
-40dB MIN @1-30MHz
-35dB MIN @30-60MHz
-30dB MIN @60-100MHz
7 - Common Mode Rejection:
-30dB MIN @1-50MHz
8 - Hipot Test: 1500Vrms
9 - Operation Temperation Range: -40℃ To +85℃
Company Contact:
- Posted By: Shenzhen Trxcom Electronics Co.,Ltd
- Phone: 86--13554918626
- Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen , Guangdong , China
- Email:
Published date: August 23, 2016
- Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic, Lan Transformer, Audio transformer.
The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
1) 10/100/1000M LAN pulse transformer and filter
2) RJ45 connector with 10/100/1000M magnetic
3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer
4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
