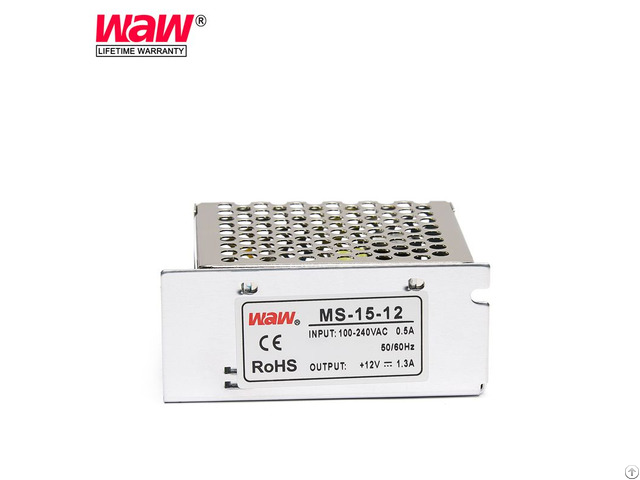

15w Switching Power Supply - China

WAW Product Details：

MODEL MS-15-5 MS-15-12 MS-15-24 MS-15-48

OUTPUT DC voltage 5V 12V 24V 48V Rated current 3A 1.3A 0.7A 0.35A Current range 0 ~ 3A 0 ~ 1.3A 0 ~ 0.7A 0 ~ 0.35A Rated power 15W 15.6W 16.8W 16.8W Ripple & noise 100mVp-p 120mVp-p 120mVp-p 150mVp-p Voltage ADJ.

range ±10% ±10% ±10% ±10% Setup, rise, hold time 500ms, 30ms, 20ms/230VAC

INPUT Voltage range 85~264VAC 230~370VDC Frequency range 47 ~ 63Hz Efficiency 77% 79% 80% 81% Ac current 0.35A/115VAC 0.25A/230VAC Inrush current Cold start 15A/115VAC 30A/230VAC Leakage current <0.5mA/240VAC

PROTECTION Overload 115 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed Over voltage 5.8~6.8V 14~16.5V 28~32V 55~64V Protection type : Shut off

ENVIRONMENT Working temp, humidity -10℃ ~ +60℃, 20% ~ 90% RH non-condensing Storage temp, humidity -20℃ ~ +80℃, 10% ~ 95% RH non-condensing Withstand vibration 10 ~ 500Hz, 2G 10min/1cycle, period for 60min.

each axes

SAFETY & EMC Safety standard Design refer to UL1012, EN60950-1, EN61347-1, EN-61347-2 approved Withstand voltage I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC Isolation resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC EMC standard EN55015, EN55022, EN55024, EN61000-3-2, EN61000-3-3, EN61547 approved

OTHERS MTBF 500K hrs Dimension 99*97*36mm (L*W*H) Wegith/Packing 0.17Kg; 100pcs/17.5kg/0.037m3

NOTE 1 - All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2 - Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3 - Tolerance : includes set up tolerance, line regulation and load regulation.

YUEQING WODE ELECTRICAL CO., LTD is a high-tech specialized manufacturer in China, and we have more than 8 years production experience for switching power supply and Led driver.

We are provided with abundant technical strength, first-class production and checkout equipment.
