Spb Series Igbt Snubber Capacitor Thin Film Switching Power Supply Capacitors For Induction Heater - China

Product Overview

SPB Series Capacitor

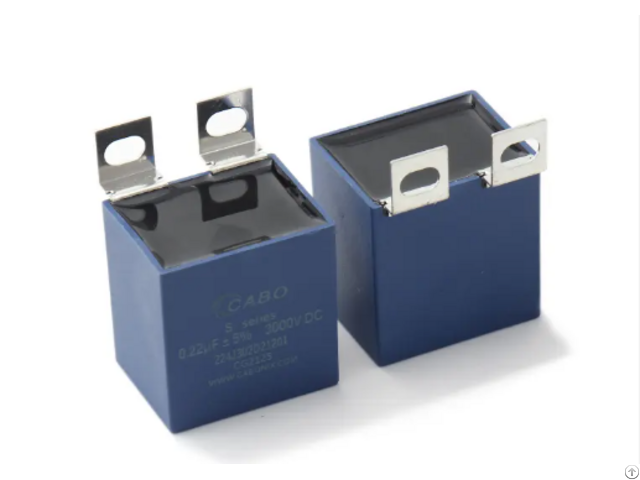

SPB series is plastic box sealed capacitor with lug terminals, especially designed as snubber parts for IGBT, In order to block voltage peaks, snubber capacitors are typically connected in parallel with semiconductors.

CABO offering includes axial and radial configurations, as well as a full line of low inductance, direct-mount IGBT snubbers.

All designs feature high dV/dt capability tomeet the peak current demands of inverter switching.

Detailed product Description Product name:

SPB Series Capacitor Application:

IGBT snubbering

Solar/Wind inverter

Power supply

Induction heater machine

Frequency inverter Features:

Dry type structure

High over-voltage and over-current

Low ESL

Low ESR

Self-healing

RoHs compliant

PRODUCT SPECIFICATIONS

Electrical Parameter Capacitance

0.0047～10μF

Temperature

-40℃～+85℃

Capacitance Tolerance

±5%(J); ±10% (K)

Rated Voltage

630～3000V.

DC

Test Voltage between terminal

1.5-1.75Un/60s

Dissipation factor

Tgσ≤0.0008(10KHz, 20℃)

Insulation Resistance

≥3000s but need not exceed 30GΩ

Dv/Dt

＞200V/μs

Leads

Pins, tinned copper lugs, wire

Lifetime Expectancy

≥100, 000Hours (Un, ≤70℃)
