Ingke Ykju 2129bnl We 7498011122ar Smt 1 Port 100 Base T Tab Up Rj45 Lan With Transformer - China

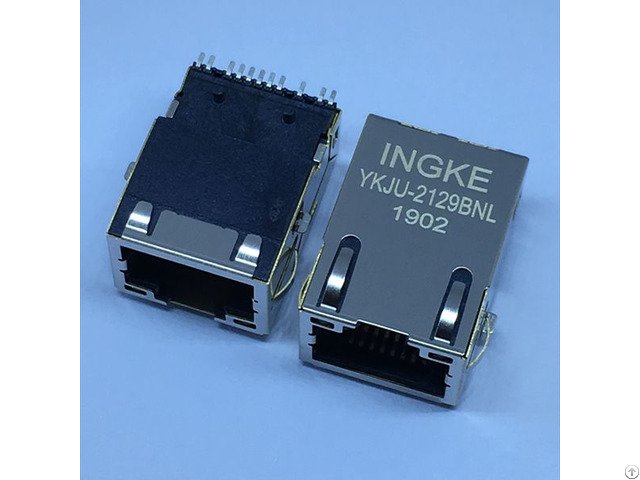

Ingke YKJU-2129BNL 100% Cross 7498011122AR SMT 1 Port 100 BASE-T Tab Up RJ45 LAN with Transformer Part Number: 7498011122AR

Made in China: YKJU-2129BNL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100 Base-T, AutoMDIX

Mounting Type: Board Edge, Surface Mount

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Yellow-Green

Number of Cores per Jack: 4

Shielding: Shielded, EMI Finger

Features: Board Guide, Solder Retention

Tab Direction: Up

Contact Material: Copper Alloy

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Contact Finish Thickness: 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material: Copper Ally

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;7498011121 7499031211 7499211003 7499111001A 7499110124 7499121211 7499010003A 7499010126A 7498210220A 7499210123A 7498210002 7498011001A 7499111000A 7499051002 7499410420 7499611421 7497111611A 7499311611 7499511610 7499010004A 7498011008 74990101241

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: https://www.ingketech.net/

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
