Ingke Ykku 8339nl 100 Percent Cross 0826 1x1t 43 F Rj45 Magnetic Jack Connectors - China

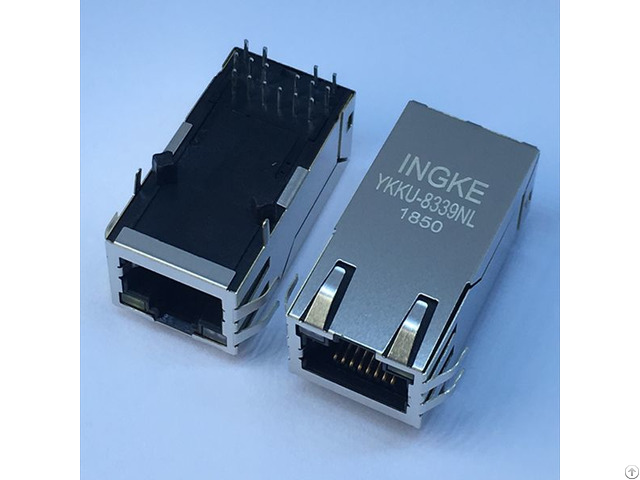

Ingke YKKU-8339NL 100% Cross 0826-1X1T-43-F 1 Port Through Hole 1000 BASE-T Tab Up RJ45 Magnetic Jack Connectors Part Number: 0826-1X1T-43-F

Made in China: YKKU-8339NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100/10 00 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Green, Orange - Yellow

Number of Cores per Jack: 8

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Up

Contact Material: Copper Alloy

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Contact Finish Thickness: 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material: Copper Ally

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;0817-1A1T-11-F 0879-2C8R-54 C850-2G8R-54 C850-2G6R-54 0879-2C6R-54 0863-2X8R-54-F 0854-2X6R-GK-F C850-2G8R-M9 0833-2X8R-54-F 0895-2C4R-GK 0811-2X8R-19-F L834-1G1T-91 SS73100-047F L8BE-1G1T-91A 0826-1X1T-KH-F L8BE-1G1T-BFH 2250506-1 SS-60300-080 SS-60300-081 2250013-4 0833-2X6R-33-F 0833-2X8R-33-F 0843-2C1T-33-F 0863-2X5R-54 0817-1D1T-21-F L811-1X1T-06-F 0843-2B1T-33-F 0833-2X1T-33-F

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: https://www.ingketech.net/

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
