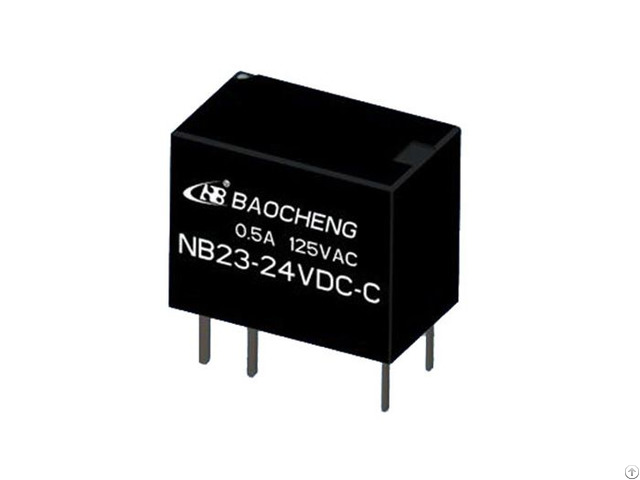

Nb23 Relay - China

Baocheng export excellent power relay, telecom relays and automotive relays.

1A switching capability

High sensitivity, low power consumption 150mW

Standard DIP structure

One group of NO&NC contact form available

Plastic sealed type

Environmental friendly product

Outline dimension: 12.5 x 7.5 x 10mm

Telecom Relays, Telecom Relays 19F, Telecom Relays Exporter, China

Contact Ratings

Contact Form: 1C

Contact Material: AgNi (Gold Clad)

Contact Load Capacity: 0.5A, 1A/125VAC; 1A/30VDC

Max.

Switching Current: 1A

Max.

Switching Power: 62.5VA/30W

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS Technical Ratings

Insulation Resistance: 1000MΩ

Dielectric Strength(Between coil&contact): 1000VAC

Operate Time (Max.

): 5ms

Release Time (Max.

): 5ms

Ambient Temperature: -30℃ ~70℃

Terminal Type: DIP Coil Ratings

Nominal Voltage (3-24)VDC

Nominal Coil Power 0.15W, 0.2W
