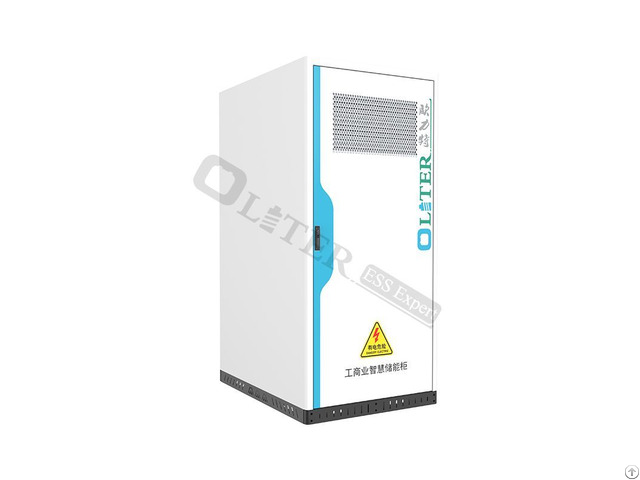

OLT All-in-One Liquid-Cooling Outdoor Energy Storage Cabinet

100/125kW 233/261kWh Liquid-Cooled C&I Energy Storage Cabinet

Oliter Liquid-Cooled C&I Energy Storage Cabinet is an all-in-one commercial and industrial battery storage system integrating LiFePO4 batteries, PCS, BMS, EMS, liquid thermal management, electrical protection, fire suppression, and communication in one outdoor enclosure.

With 100kW and 125kW PCS options and 233kWh and 261kWh battery capacity options, this liquid-cooled C&I ESS can be configured for factories, industrial parks, commercial buildings, EV charging sites, and solar-plus-storage projects requiring peak shaving, load shifting, demand management, or higher renewable energy utilization.

The liquid cooling system keeps battery operating temperature below approximately 38°C under specified conditions and controls cell temperature difference to less than 3°C.

Combined with a compact 1100 × 1400mm cabinet footprint, the system is positioned for C&I projects where thermal consistency, high battery utilization, and installation space are important.

Why Choose This Liquid-Cooled C&I ESS?

Flexible 100kW and 125kW PCS Power

The Liquid-Cooled C&I Energy Storage Cabinet can be configured with 100kW or 125kW PCS power according to the site's peak demand, charging window, transformer capacity, discharge duration, and operating strategy.

PCS power and battery capacity should be selected together.

A larger PCS provides greater instantaneous charge and discharge capability, while battery capacity determines how long the required power can be sustained.

233kWh and 261kWh Battery Options

The 233kWh and 261kWh configurations allow EPC contractors and project owners to balance energy capacity, cabinet quantity, discharge duration, and site space.

The 261kWh version provides more nominal stored energy within the same general cabinet footprint, making this industrial energy storage cabinet particularly relevant for space-constrained projects.

Higher Energy Capacity per Cabinet Footprint

The liquid-cooled cabinet measures approximately 1100 × 1400 × 2380mm.

Compared with Oliter's current 215/241kWh air-cooled cabinet, the liquid-cooled version provides higher nominal battery capacity within a smaller cabinet footprint.

This can be valuable for factories, EV charging sites, industrial parks, commercial facilities, and retrofit projects where outdoor equipment space is limited.

Actual project footprint must also include maintenance clearance, fire separation, cabling, access, and local installation requirements.
