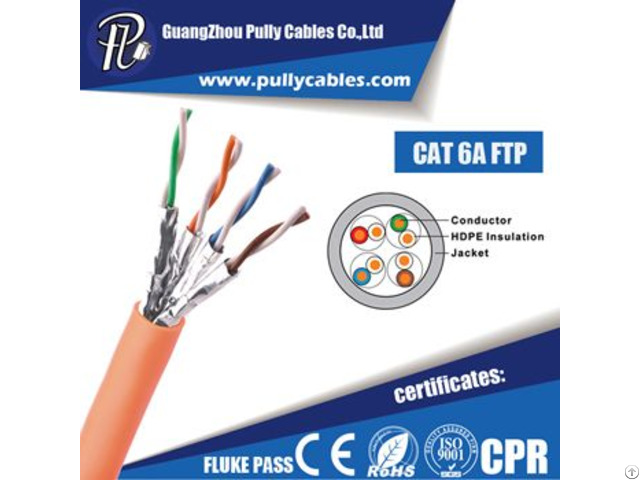

CAT6A FTP INDOOR CABLE

Cat6A FTP Cable provides excellentl performance to support extremely high speed applications, The individually shielded pairs ensure maximum transmission and improve alien crosstalk performance, with a frequency of 500MHZ can transmit data at 10BAST-T,100BASETX,1000BA SE-T and 10G BASE-T(Gigabit Ethernet) and also complies to standard TIA/EIA-56.2-D&IEC611 56.

SPECIFICATIONS:

Conductor Solid Bare Copper

Conductor Dia.

23AWG 0.58mm

Insulation PE

Insulation Dia.

1.3±0.02mm

Pair Screen:

each pair individually surrounded by Al Foil

Jacket PVC/LSZH

Drain Wire TC/BC/CCA

Jacket Dia.

7.5±0.2mm

Number of shielded pairs

Colour code pair 1 Blue-White / Blue

Colour code pair 2 Orange-White / Orange

Colour code pair 3 Green-White / Green

Colour code pair 4 Brown-White / Brown

ELECTRICAL CHARACTERISTICS：

High frequency (at 20°)

Type Attenuation NEXT PS NEXT PS ELFEXT (db) ELEFXT (db ) Return Loss

4 3.7 65.0 63.3 53.0 5 6.0 23.0

8 5.3 60.7 48.8 46.9 4 9.9 24.5

10 5.9 59.0 57.3 45.0 48.0 25.0

16 7.5 56.0 54.2 40.9 43.9 25.0

20 8.4 55.0 52.8 39.0 42.0 25.0

25 9.5 53.3 41.3 37.0 40.0 24.3

31.2 10.6 51.9 49.9 35 .

1 38.1 23.6

62.5 15.4 47.0 45.4 29 .

1 32.1 21.5

100 19.8 44.0 42.3 24 - 8 27.8 20.1

200 29.0 39.8 37.8 18 - 8 21.8 18

250 32.8 38.3 36.3 16 - 8 19.8 17.3

300 26.4 37.1 34.1 15 - 5 18.5 16.8

500 48.9 33.8 30.8 11 - 0 14.0 15.2

Characteristic Impedance: 100±6Ω

Conductor Resistance ≤9.38Ω/100m

Insulation Resistance: 100mΩ

Mutual Capacitance: <5.6nF/10 0m

Resistance Unbalance: 5%Max

Capacitance Unbalance: 330pF/100m
