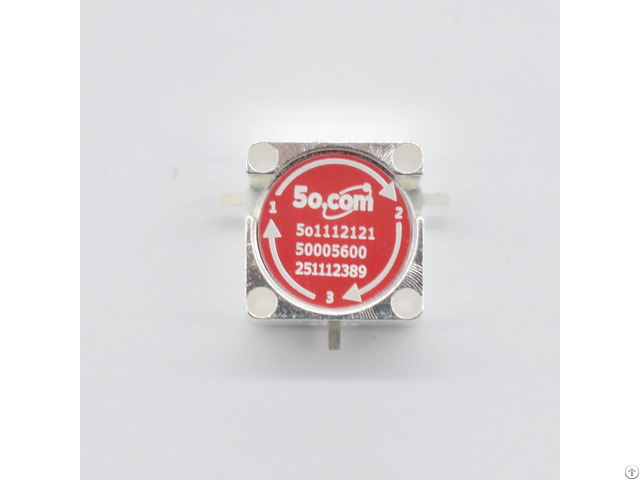

Drop In Circulator High Isolation 5000 To 5600mhz Tab Connector - China
price: 35.00 Dollar US$
Product Features:
Model Number: 5o111212150005600
Frequency Range: 5000 to 5600MHz
Isolation Min: 23dB
VSWR Max: 1.2
Insertion Loss Max: 0.3dB
Connector Type: TAB
Forward Power: 60W
Reverse Power: 60W
Impedance: 50 ohm
Operating Temperature: -40 to +85℃
Storage Temperature: -55 to +125℃
Dimensions: 12.7 mm x 12.7 mm x 8 mm Applications:
RF power amplifier protection in microwave communication systems
Digital satellite and mobile communication equipment
Medical communication and security devices
Military space and commercial microwave applications
5G and wireless infrastructure Recommended Matching Products:
RF power amplifiers
Transceiver modules
PCB based communication systems
Test and measurement equipment for microwave bands
Military and aerospace electronic systems
Company Contact:
- Posted By: 5o.com
- Phone: 13902992810
- Address: Software Industry Base, Shenzhen , Guangdong , China
- Email:
- Website: https://www.5o.com/
Published date: December 14, 2025
- Business Description: 5o.
com is a modern high-tech enterprise specializing in passive RF and microwave components, integrating R&D, production, and sales.
The company focuses on technological innovation as its core and relies on technology leadership.
The company's main products: Microwave RF isolators, circulators, coaxial terminations, coaxial attenuators, power splitters/dividers, waveguide to coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers and other microwave passive components.
Focusing on cutting-edge fields such as 5G communication, satellite navigation, radar electronic countermeasures, and aerospace, we provide customers with high-performance microwave passive device integrated solutions.
