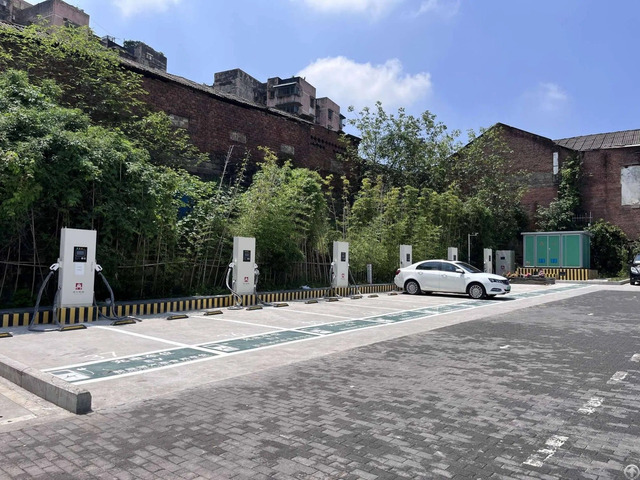

Integrated Dc Charging Pile Ip55 20kw 30kw 40kw 60kw - China

Chinese Standard:

The Integrated DC Charging Pile is available in power specifications of 20kW, 30kW, 40kW, and 60kW.

It operates with an input voltage of 380V AC at a frequency of 50Hz or 60Hz, and outputs DC voltage ranging from 50V to 1000V.

Designed for durability, it features an IP55 protection class and a GB/T 20234.3 charging interface.

The charging pile functions in temperatures from -30°C to 60°C, with ambient humidity between RH5% and 95%, and can operate at altitudes up to 2000 meters.

Startup is convenient and versatile, supporting plug-and-play, card swipe, scan, NFC, and Bluetooth modes.

Communication is compliant with GB/T27930 standards, and the device measures 650mm × 393mm × 145mm (W × H × D).

European Standard:

This model supports power ratings of 20kW, 30kW, 40kW, and 60kW, with an input voltage of 400V AC and frequency of 50Hz or 60Hz.

It delivers DC output from 50V to 1000V and is equipped with IP55 protection and a CCS2 charging interface.

The operating temperature ranges from -30°C to +60°C, with relative humidity between 5% and 95%, and a maximum altitude of 2000 meters.

Startup options include plug-and-play, swipe, scan, NFC, and Bluetooth, while communication follows DIN SPEC 70121 and ISO 15118 standards.

The dimensions are consistent at 650mm × 393mm × 145mm.

American Standard:

Available in 20kW, 30kW, 40kW, and 60kW versions, this charger operates at 480V AC, 50Hz/60Hz, and outputs DC voltage between 50V and 1000V.

It features IP55 protection and a CCS1 charging interface.

The operating temperature is -30°C to 60°C, with humidity ranging from 5% to 95%, and it can function at altitudes up to 2000 meters.

Start-up methods include plug-and-play, card swipe, scan, NFC, and Bluetooth.

Communication is compliant with ISO 15118 standards, and dimensions are 650mm × 393mm × 145mm.

Japanese Standard:

This variant supports 30kW and 60kW power outputs, with an input voltage of 400V AC and frequency of 50Hz/60Hz.

DC output ranges from 50V to 1000V, and it comes with IP55-level protection and a CHAdeMO charging interface.

It is designed to operate in environments from -30°C to 60°C, with relative humidity of 5% to 95%, and altitudes up to 2000 meters.

Startup options include plug-and-play, card swipe, scan, NFC, and Bluetooth.

Communication is via the CHAdeMO protocol, and the device measures 650mm × 393mm × 145mm.

Features:

The Integrated DC Charging Pile is equipped with OTA remote upgrade capabilities, allowing for seamless software updates.

Its reinforced metal shell ensures durability and IP55-level protection against dust and water.

Multiple charging methods are supported, including card swipe, NFC induction, plug-and-play, app scanning, and remote reservation.

Advanced flexible intelligent control technology enables adaptive charging compatible with a wide range of vehicles, such as passenger cars, commercial vehicles, and sanitation trucks.

For safety, the charging pile incorporates comprehensive protection measures, including emergency stop, over-temperature, leakage, over-voltage, under-voltage, short-circuit, grounding, overload, and thunderstorm protection.
