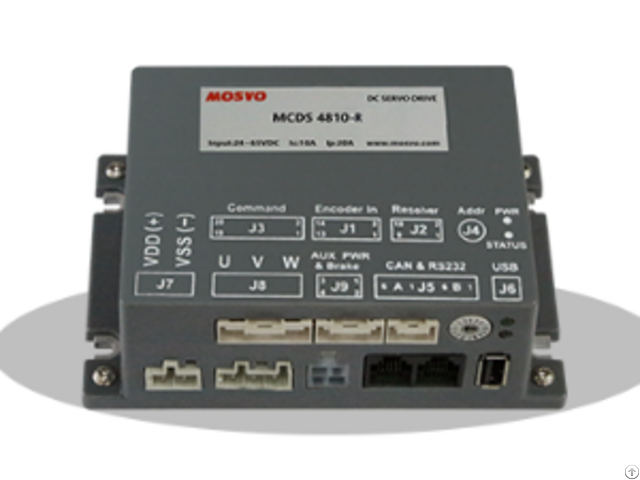

Mosvo Digital Servo Driver For Bldc Motor Mcds 4810 R - China
price: contact company for price
Features:
1 - Operating Modes: Torque Mode, Speed Mode, Position Mode;
2 - Feedback Elements: Incremental encoder, Hall sensor, resolver;
3 - Control Ports: Digital command RS232, CAN, Pulse1/CU (high-speed input, pulse or CU (forward pulse) input), Pulse2/CD/DIR (high-speed input, direction or CD (reverse pulse) input), ENABLE/DIR/LEFT/RIGHT (4 fixed-function programmable inputs), FAULT (1 fixed-function programmable output), IO1~4 (4 programmable inputs/outputs), ±10V analog voltage, single-ended analog voltage (potentiometer);
4 - Network control via CAN bus;
5 - Suitable for driving brushless DC servo motors;
6 - Space vector operation, sine wave control (brushless DC servo motors);
7 - Motor brake control;
8 - Automatic zeroing function;
9 - Hardware and software limit functions;
10 - IIT current limit;
11 - Temperature protection;
12 - Overvoltage and undervoltage protection;
13 - Rapid runaway protection;
14 - Tracking over-limit protection.
Company Contact:
- Posted By: Xi an Mosvo Electronics Technology Co., Ltd.
- Phone: 00862988892291
- Address: Room 1103, Building H, VAN Metropolis, No.35 Tang Yan Road, High-tech Zone,, Xi an, Shaanxi , China
- Email:

- Website: http://www.mosvo.com
Published date: December 23, 2025
- Business Description: Mosvo Technology takes servo drives as its core business.
Its main products include DC brushless servo drives, sine wave DC brushless servo drives, square wave DC brushless drives, motors, etc., which have been widely used in robotics, medical treatment, instrumentation, textiles, etc.
packaging, laser, measurement, advertising and other fields.
